ACT HD/Race Sprung 6 Pad Clutch Kit | Multiple Fitments (GM3-HDG6)

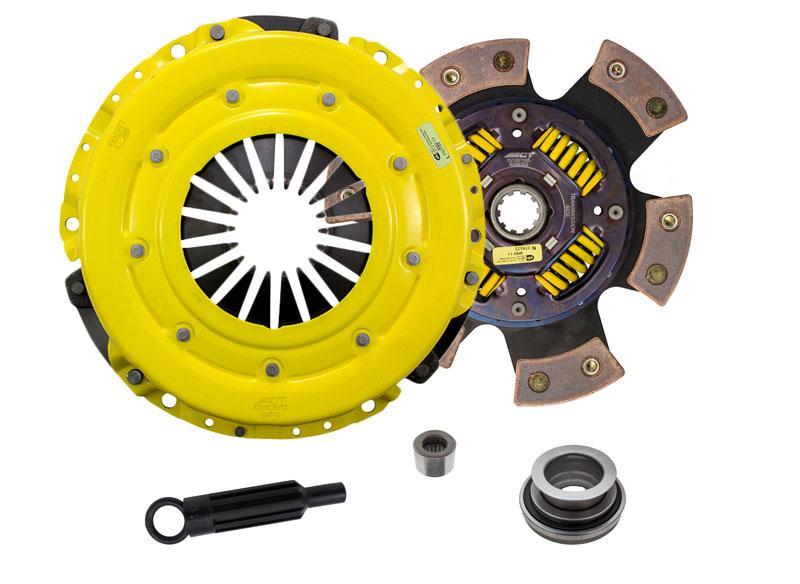

HD/Race Sprung 6 Pad Clutch Kit by ACT

GM3-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

• Product Weight (lbs.): 22
• Torque Capacity (ft/lbs.): 805
• Torque Capacity Over OE: 69%
• Disc Material: Ceramic
• Clutch Disc Diameter (Inches): 10.5
• Clutch Disc Diameter (Millimeters): 266
• Input Shaft Diameter (inches): 1.125
• Pressure Plate Type: Heavy Duty

Benefits

• Light to moderate pedal effort
• Aggressive engagement
• OE to mild gear rattle
• Moderate friction life
• Uses select ceramic friction materials for high heat tolerance and maximum performance
• 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

• 1973-1979 Oldsmobile Omega
• 1967-1982 Pontiac Firebird
• 1963-1968 Chevrolet Chevy II
• 1968-1973 Chevrolet Chevelle
• 1970-1979 Chevrolet Monte Carlo
• 1958-1972 Chevrolet Biscayne
• 1965-1981 Oldsmobile Cutlass
• 1968-1979 Chevrolet El Camino
• 1967-1982 Chevrolet Camaro
• 1959-1975 Chevrolet Impala
• 1970-1979 Buick Skylark
• 1965-1978 Chevrolet Corvette
• 1964-1973 Pontiac GTO
• 1973-1981 Chevrolet Malibu
• 1979-1979 Buick Century
• 1969-1979 Chevrolet Nova
• 1955-1975 Chevrolet Bel Air
• 1979-1979 Pontiac Phoenix
• 1979-1979 Pontiac LeMans
• 1973-1979 Buick Regal
