ACT HD/Race Sprung 6 Pad Clutch Kit | Multiple Fitments (ST1-HDG6)

HD/Race Rigid 6 Pad Clutch Kit

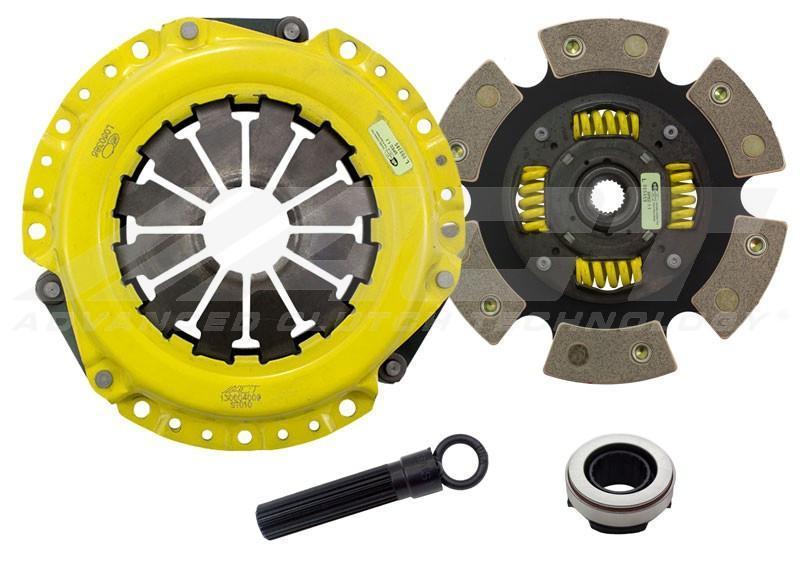

ST1-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

• Torque Capacity (ft/lbs.): 320
• Torque Capacity Over OE: 74%
• Disc Type: Race Disc
• Spline Count: 22
• Spline Size (in.): 1
• Disc Diameter (in.): 8.4
• Disc Diameter (mm.): 214
• Pressure Plate Type: Heavy Duty
• Recommended for race use only

Applications

• 1993-1999 Saturn SC1 / SC2
• 1991-1999 Saturn SL / SL1 / SL2
• 1993-1999 Saturn SW1 / SW2

What's In The Box?

• 6214125
• AT07
• RB176
• ST010

Warranty

• One (1) Year from Retail Purchase

Downloads

• Installation Instructions
