ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Volkswagen Golf (03) (VW6-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Volkswagen Golf (03) (VW6-HDG6)

VW6-HDG6

In stock

$1,589.00 USD
$1,962.00 USD $1,589.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

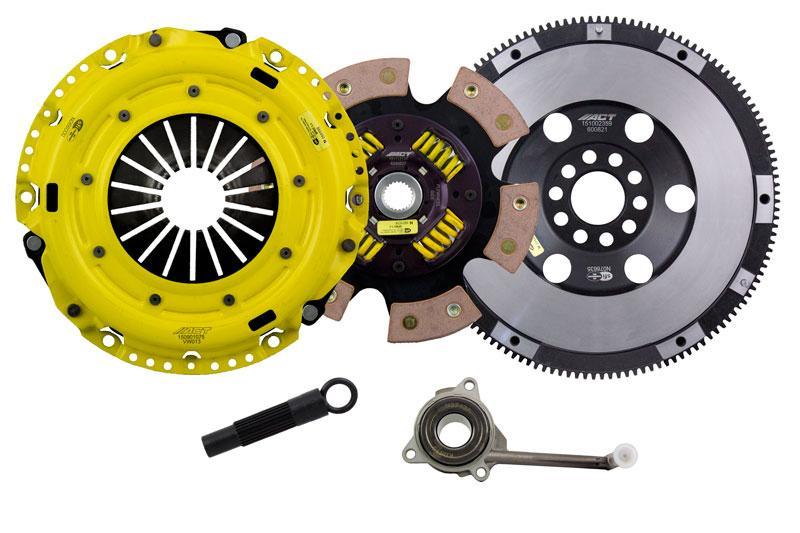

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for Volkswagen Golf (03) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate undergoes a rigorous four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and reliable power transfer. Constructed with precision cover stampings, this clutch assembly offers enhanced rigidity and stability, making it suitable for racing and high-stress applications.

Designed for 2003-2008 Volkswagen Golf models, this clutch kit is an ideal upgrade for street or track use, especially in vehicles subjected to increased power or aggressive driving. It is a direct replacement for stock components, ensuring straightforward installation and compatibility. The kit is suitable for vehicles with modified or stock engines requiring a robust clutch solution. No additional components are specified, but proper installation is recommended for optimal performance. This clutch kit delivers increased clamp force and durability, making it well-suited for performance enthusiasts seeking reliable, high-capacity clutch performance.

Overview

HD/Race Sprung 6 Pad Clutch Kit by ACT

VW6-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 30.2
  • Torque Capacity (ft/lbs.): 525
  • Torque Capacity Over OE: 73%
  • Disc Material: Ceramic
  • Clutch Disc Diameter (Inches): 9.4
  • Clutch Disc Diameter (Millimeters): 240
  • Input Shaft Diameter (inches): 0.9375
  • Pressure Plate Type: Heavy Duty
  • Flywheel Type: Streetlite

Benefits

  • Light to moderate pedal effort
  • Aggressive engagement
  • OE to mild gear rattle
  • Moderate friction life
  • Rigid design may increase spline wear
  • Uses select ceramic friction materials for high heat tolerance and maximum performance
  • 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

  • 2002-2004 Volkswagen Jetta
  • 2004-2004 Volkswagen R32
  • 2002-2005 Volkswagen Golf

What's In The Box?

  • 1 - ACT HD/Race Sprung 6 Pad Clutch Kit

Warranty

  • ACT 1-Year Limited Warranty
