ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Corona (70-71) (TK2-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Corona (70-71) (TK2-HDG6)

TK2-HDG6

In stock

$509.00 USD
$629.00 USD $509.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Toyota Corona (70-71) is a high-performance clutch assembly designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process, ensuring durability and consistent performance under high-stress applications. The clutch disc incorporates a 6-pad, spring-centered race design with a spring-center to effectively damp torsional vibrations, providing smooth engagement and enhanced longevity. Built with precision cover stampings, this clutch assembly offers rigidity and reliability for racing or heavy-duty use.

Designed specifically for the 1970-1971 Toyota Corona models, this clutch kit is suitable for vehicles equipped with appropriate engine configurations requiring a robust upgrade. It serves as a direct replacement for stock clutch components, delivering increased clamping force and durability for street or track use. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Ideal for performance enthusiasts seeking improved clutch performance, this ACT clutch kit enhances power transfer and pedal feel, making it suitable for high-performance driving scenarios and demanding daily driving applications.

Overview

ACT HD/Race Sprung 6 Pad Kit

TK2-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 11.1
  • Torque Capacity (ft/lbs.): 265
  • Torque Capacity Over OE: 0.86
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1970-1971 Toyota Corona

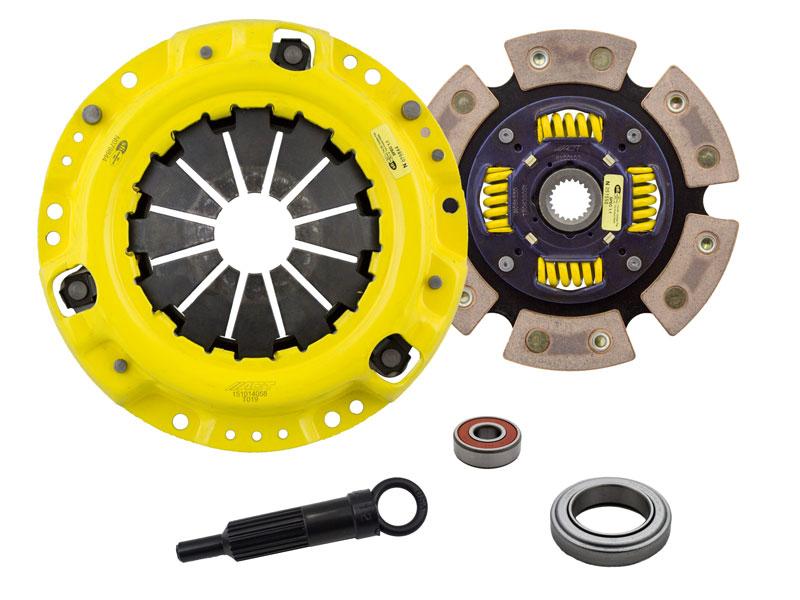

What's In The Box?

  • Clutch Friction Disc (6200103)
  • Clutch Alignment Tool (AT12)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB005)
  • Clutch Pressure Plate (T019)

References

Warranty

  • Manufacturer 1 Year Warranty
