• ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Corolla (80-82) (TL4-HDG6)
1 1

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Corolla (80-82) (TL4-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Corolla (80-82) (TL4-HDG6)

TL4-HDG6

In stock

$616.00 USD
$616.00 USD $616.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Toyota Corolla (1980-1982) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, utilizing an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance. The kit includes a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and enhanced control. Constructed with precision cover stampings, this clutch assembly offers rigidity and reliability, making it suitable for racing or heavy-duty applications.

This clutch kit is specifically engineered for 1980-1982 Toyota Corolla models, compatible with various engine configurations within this chassis. It serves as a direct replacement or upgrade for stock clutch components, delivering improved holding capacity and longevity under high-stress conditions. The assembly is designed for bolt-on installation, requiring no additional modifications. Ideal for track use, spirited street driving, or off-road applications, this clutch kit ensures maximum performance and durability. The package includes all necessary components for a complete installation, making it a reliable choice for enthusiasts seeking enhanced clutch performance.

Overview

ACT HD/Race Sprung 6 Pad Kit

TL4-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 15
  • Torque Capacity (ft/lbs.): 355
  • Torque Capacity Over OE: 0.89
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1980-1982 Toyota Corolla

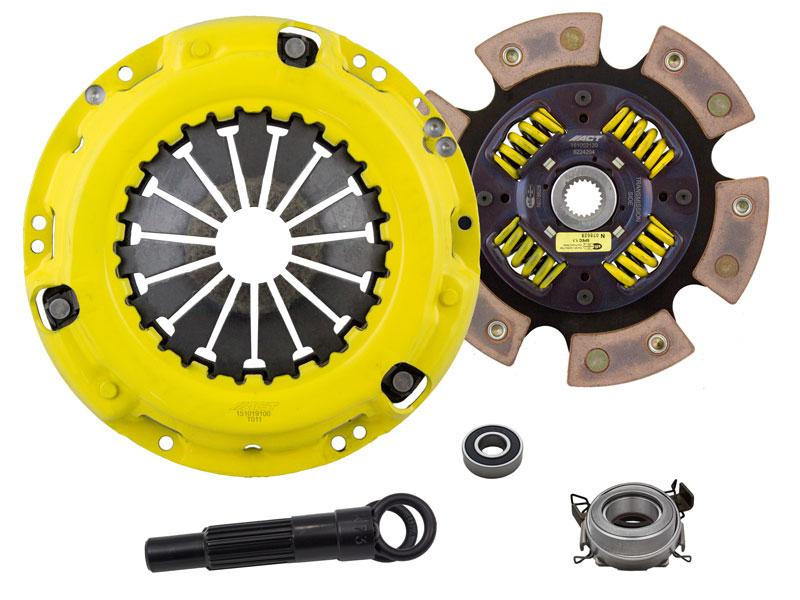

What's In The Box?

  • Clutch Friction Disc (6224203)
  • Clutch Alignment Tool (AT12)
  • Clutch Pilot Bearing (PB1001)
  • Clutch Release Bearing (RB201)
  • Clutch Pressure Plate (T011)

References

Warranty

  • Manufacturer 1 Year Warranty
