ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Corolla (80-87) (TL1-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Corolla (80-87) (TL1-HDG6)

TL1-HDG6

In stock

$626.00 USD
$626.00 USD $626.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate components undergo a rigorous four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and reliable power transfer. Constructed with precision cover stampings, this clutch assembly offers enhanced rigidity and stability, making it suitable for aggressive driving and racing applications.

This clutch kit is compatible with Toyota Corolla models from 1980 to 1987, specifically tailored for vehicles requiring a robust, high-capacity clutch solution. It is intended for street and track use, delivering increased performance and longevity under high-stress conditions. The kit is a direct bolt-on replacement for stock components, simplifying installation without modifications. Suitable for vehicles with upgraded or stock engines, this clutch assembly is ideal for enthusiasts seeking improved torque capacity and durability for spirited driving or racing scenarios. The kit provides all necessary components for a complete upgrade, ensuring optimal clutch operation and reliability.

Overview

ACT HD/Race Sprung 6 Pad Kit

TL1-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 11.3
  • Torque Capacity (ft/lbs.): 265
  • Torque Capacity Over OE: 0.86
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1980-1987 Toyota Corolla

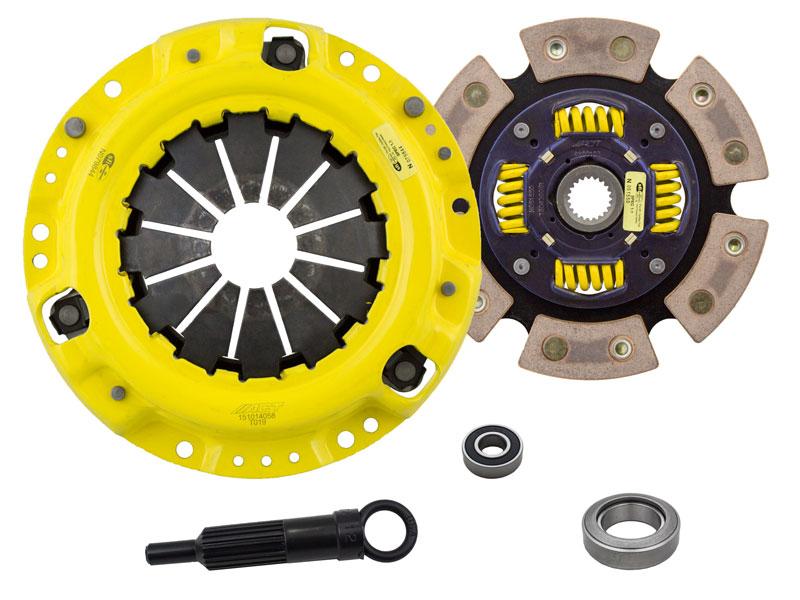

What's In The Box?

  • Clutch Friction Disc (6200103)
  • Clutch Alignment Tool (AT12)
  • Clutch Pilot Bearing (PB1001)
  • Clutch Release Bearing (RB201)
  • Clutch Pressure Plate (T019)

References

Warranty

  • Manufacturer 1 Year Warranty
