• ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Ford Ranger (83-84) (FC2-HDG6)
1 1

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Ford Ranger (83-84) (FC2-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Ford Ranger (83-84) (FC2-HDG6)

FC2-HDG6

In stock

$552.00 USD
$682.00 USD $552.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for Ford Ranger (83-84) is a high-performance clutch assembly designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process to ensure durability and consistent performance. The clutch disc incorporates a 6-pad, spring-centered race design with a spring-center to effectively damp torsional vibrations, providing smoother engagement and enhanced drivability. Built with precision cover stampings, this clutch kit offers rigidity and reliability for aggressive driving scenarios.

Designed specifically for 1983-1984 Ford Ranger models, this clutch kit is suitable for vehicles requiring a robust upgrade for street or race use. It is a direct replacement for stock components, ensuring straightforward installation. The kit includes the pressure plate, clutch disc, and necessary hardware, making it a comprehensive solution for replacing worn or underperforming clutches. Ideal for racing, off-road, or high-performance street applications, this clutch assembly delivers increased clamp force and durability to handle higher torque loads and aggressive driving styles.

Overview

ACT HD/Race Sprung 6 Pad Kit

FC2-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 14.3
  • Torque Capacity (ft/lbs.): 340
  • Torque Capacity Over OE: 0.66
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 22
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1983-1984 Ford Ranger

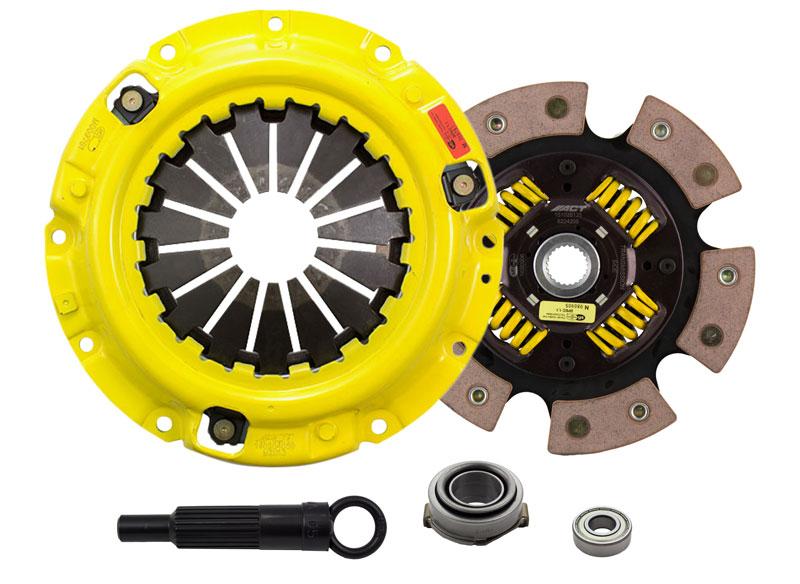

What's In The Box?

  • Clutch Friction Disc (6224205)
  • Clutch Alignment Tool (AT05)
  • Clutch Pressure Plate (MZ013)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
