• ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Acura Integra (86-89) (AI1-HDG6)
1 1

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Acura Integra (86-89) (AI1-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Acura Integra (86-89) (AI1-HDG6)

AI1-HDG6

Out of stock

$602.00 USD
$602.00 USD $602.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Acura Integra (1986-1989) is a high-performance clutch assembly designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, constructed with an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The 6-pad, spring-centered race disc is engineered to damp torsional vibrations effectively, providing smooth engagement and reliable power transfer. Built with precision cover stampings, this clutch kit offers enhanced rigidity and stability, making it suitable for aggressive street or race applications.

Designed specifically for 1986-1989 Acura Integra models, this clutch kit is a direct replacement upgrade for stock components. It is compatible with vehicles equipped with a compatible engine configuration and is ideal for track use, high-performance street driving, or motorsport applications. The kit includes the heavy-duty pressure plate and race disc, ensuring a straightforward installation process. Suitable for drivers seeking increased clamping force, durability, and consistent performance under high-stress conditions, this clutch kit delivers reliable engagement and long-lasting service life for performance-oriented enthusiasts.

Overview

ACT HD/Race Sprung 6 Pad Kit

AI1-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 10.7
  • Torque Capacity (ft/lbs.): 270
  • Torque Capacity Over OE: 0.76
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1986-1989 Acura Integra

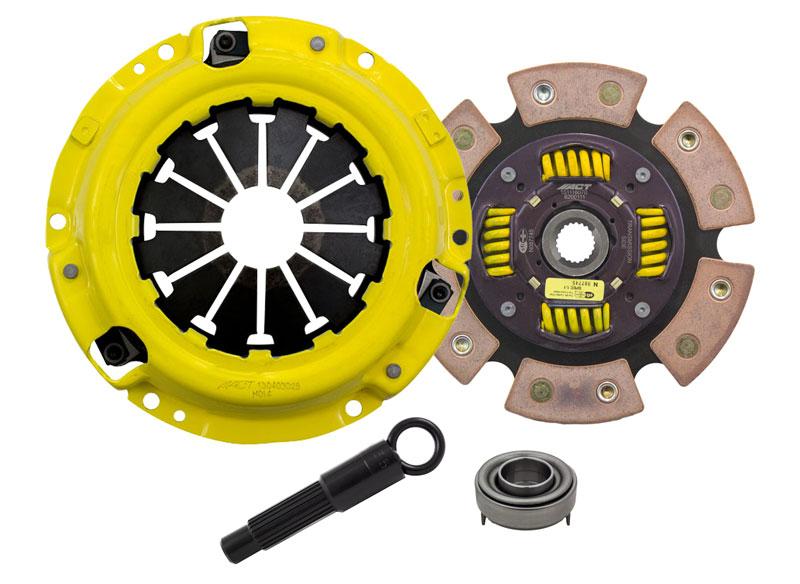

What's In The Box?

  • Clutch Friction Disc (6200111)
  • Clutch Alignment Tool (AT55)
  • Clutch Pressure Plate (H014)
  • Clutch Release Bearing (RB370)

References

Warranty

  • Manufacturer 1 Year Warranty
