• ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Ford Mustang (86-95) (FM4-HDG6)
1 1

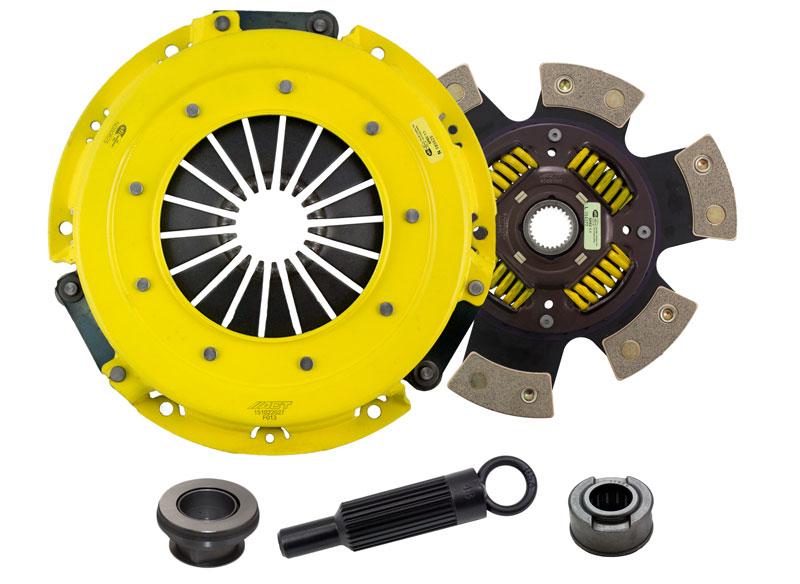

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Ford Mustang (86-95) (FM4-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Ford Mustang (86-95) (FM4-HDG6)

FM4-HDG6

In stock

$539.00 USD
$665.00 USD $539.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for Ford Mustang (1986-1995) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, utilizing an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and enhanced control. Constructed with precision cover stampings, this clutch assembly offers rigidity and reliability for aggressive street and track use.

Designed specifically for 1986-1995 Ford Mustangs equipped with suitable engines, this clutch kit serves as a robust upgrade or replacement for stock components. It is ideal for high-performance applications, including racing and spirited driving, where increased clamping force and durability are essential. The assembly is a bolt-on installation, requiring no modifications for proper fitment. The kit typically includes the pressure plate, clutch disc, and necessary hardware, ensuring a complete upgrade. Suitable for street, track, or mixed-use scenarios, this clutch kit delivers consistent power transfer and long-lasting performance under demanding conditions.

Overview

ACT HD/Race Sprung 6 Pad Kit

FM4-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 22.1
  • Torque Capacity (ft/lbs.): 620
  • Torque Capacity Over OE: 0.84
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 10.5
  • Clutch Disc Diameter (mm): 266
  • Disc Material: Ceramic
  • Input Spline Quantity: 26
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1986-1995 Ford Mustang LX, GT, SVT Cobra

What's In The Box?

  • Clutch Friction Disc (6266320)
  • Clutch Alignment Tool (ATF048)
  • Clutch Pressure Plate (F013)
  • Clutch Pilot Bearing (PB1019)
  • Clutch Release Bearing (RB1714)

References

Warranty

  • Manufacturer 1 Year Warranty
