ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Honda Civic (88) (HC7-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Honda Civic (88) (HC7-HDG6)

HC7-HDG6

In stock

$522.00 USD
$645.00 USD $522.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for Honda Civic (88) is a high-performance clutch assembly designed for demanding racing and heavy-duty applications. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under extreme conditions. The inclusion of a 6-pad, spring-centered race disc provides effective torsional vibration damping, enhancing drivability and reducing shock loads during aggressive shifts. Constructed with precision cover stampings, this clutch kit offers rigidity and reliability for competitive racing or high-stress street use.

Designed specifically for the Honda Civic (88) chassis, this clutch kit is suitable for models equipped with compatible engines and transmission setups. It serves as a direct replacement or upgrade for stock clutch components, delivering increased clamping force and improved heat resistance. The kit is ideal for track days, racing, or heavy-duty street driving where enhanced performance and longevity are required. Installation involves standard bolt-on procedures, and the kit includes all necessary components for a complete upgrade. Compatibility notes indicate suitability for various Honda Civic models from 1988, making it a reliable choice for enthusiasts seeking maximum clutch performance.

Overview

ACT HD/Race Sprung 6 Pad Kit

HC7-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Part Fitment Requirement: Must be used with 90-01 SOHC flywheel.
  • Product Weight (lbs.): 11.1
  • Torque Capacity (ft/lbs.): 300
  • Torque Capacity Over OE: 0.96
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1988-1988 Honda Civic

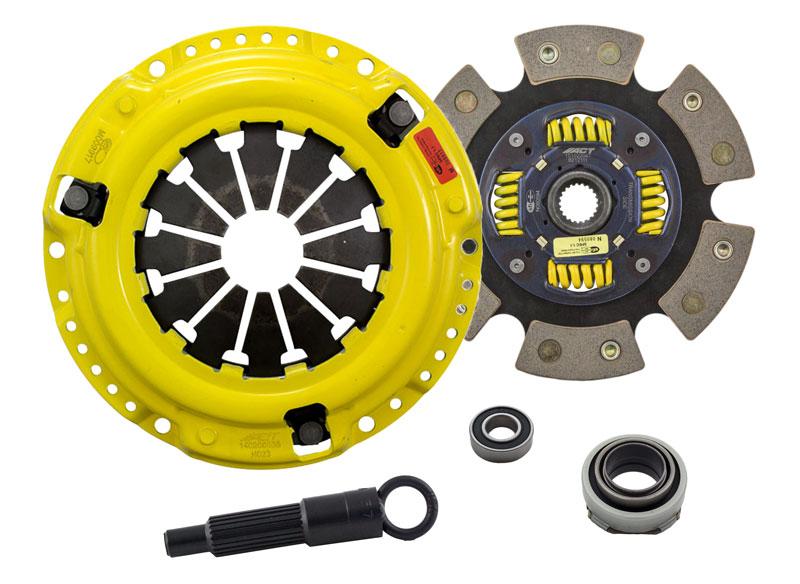

What's In The Box?

  • Clutch Friction Disc (6212111)
  • Clutch Alignment Tool (AT57)
  • Clutch Pressure Plate (H023)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB428)

References

Warranty

  • Manufacturer 1 Year Warranty
