• ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Van (88-89) (TV1-HDG6)
1 1

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Van (88-89) (TV1-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Van (88-89) (TV1-HDG6)

TV1-HDG6

In stock

$522.00 USD
$644.00 USD $522.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for Toyota Vans (1988-1989) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and improved power transfer. Constructed with precision cover stampings, this clutch assembly offers enhanced rigidity and reliability, making it suitable for both street and race applications.

Designed specifically for 1988-1989 Toyota Vans, this clutch kit is a direct replacement upgrade for stock components. It is ideal for high-performance street driving, track use, or off-road conditions where increased clamping force and durability are required. The kit is engineered for easy bolt-on installation, ensuring compatibility with the original flywheel and transmission setup. No additional modifications are necessary for proper fitment. This clutch kit provides a robust solution for drivers seeking increased holding capacity and longevity in their vehicle’s clutch system.

Overview

ACT HD/Race Sprung 6 Pad Kit

TV1-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 15.3
  • Torque Capacity (ft/lbs.): 355
  • Torque Capacity Over OE: 0.89
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1988-1989 Toyota Van

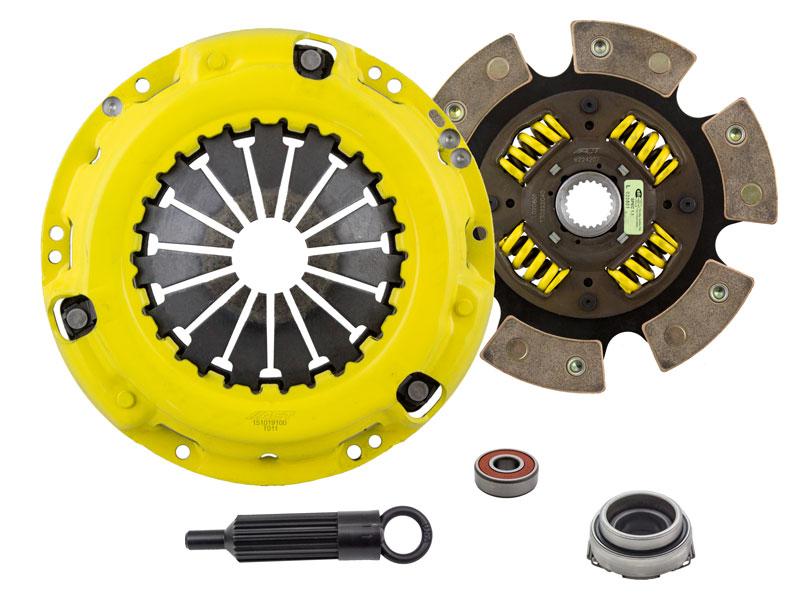

What's In The Box?

  • Clutch Friction Disc (6224207)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB444)
  • Clutch Pressure Plate (T011)

References

Warranty

  • Manufacturer 1 Year Warranty
