ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Honda Civic (89) (HW3-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Honda Civic (89) (HW3-HDG6)

HW3-HDG6

Out of stock

$502.00 USD
$620.00 USD $502.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit is a high-performance clutch assembly designed for Honda Civic models from 1989. This kit features ACT's most popular Heavy Duty pressure plate, engineered with an exclusive diaphragm design that increases clamp load, reduces deflection, and enhances clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under demanding conditions. The inclusion of a 6-pad, spring-centered race disc provides optimal damping of torsional vibrations, resulting in smoother engagement and improved power transfer. Constructed with precision cover stampings, this clutch kit offers increased rigidity and reliability, making it suitable for aggressive driving and racing applications.

Designed for 1989 Honda Civic models, this clutch kit is a direct replacement for stock components, providing increased clamping force and durability for high-performance use. It is ideal for street, track, or racing environments where enhanced grip and longevity are required. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Compatible with vehicles equipped with compatible engine configurations, this clutch assembly is built to withstand the rigors of high-stress driving. Proper installation ensures optimal performance, making it a reliable choice for enthusiasts seeking increased clutch capacity and durability.

Overview

ACT HD/Race Sprung 6 Pad Kit

HW3-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes
  • Part Fitment Requirement: Must be used with factory flywheel.
  • Product Weight (lbs.): 10.8
  • Torque Capacity (ft/lbs.): 270
  • Torque Capacity Over OE: 0.76
  • Pilot Bushing Included: Yes

Applications

  • 1989-1989 Honda Civic

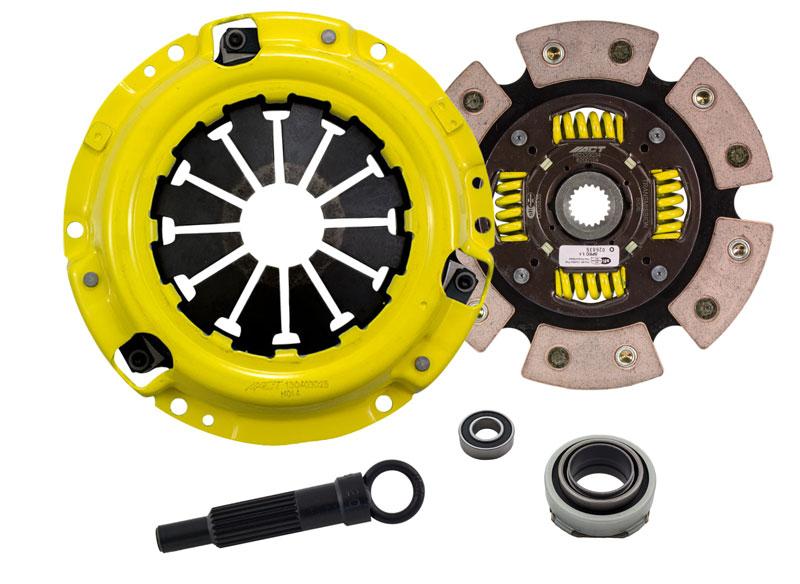

What's In The Box?

  • Clutch Friction Disc (6200104)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (H014)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB428)

References

Warranty

  • Manufacturer 1 Year Warranty
