ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Celica (89-93) (TC4-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Celica (89-93) (TC4-HDG6)

TC4-HDG6

In stock

$610.00 USD
$753.00 USD $610.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Toyota Celica (89-93) is a high-performance clutch assembly designed for demanding driving conditions. This kit includes ACT's most popular Heavy Duty pressure plate, featuring an exclusive diaphragm design that enhances clamp load, minimizes deflection, and extends clutch lifespan. The pressure plate undergoes a rigorous four-stage heat-treating process to ensure durability and consistent performance. The 6-pad, spring-centered race disc is engineered to effectively damp torsional vibrations, providing smooth engagement and reliable power transfer. Constructed with precision cover stampings, this clutch kit delivers increased rigidity and stability under high-stress conditions, making it ideal for racing or aggressive street driving.

Designed for 1989 to 1993 Toyota Celica models, this clutch kit is a direct replacement upgrade for stock components. It is suitable for vehicles equipped with high-performance or modified engines requiring enhanced clamping force and durability. The kit is intended for use in racing, track days, or spirited driving, offering improved torque capacity and longevity. Installation involves bolt-on replacement of the existing clutch components, with all necessary parts included for a straightforward upgrade. This clutch kit ensures optimal engagement and power delivery, supporting high-performance applications and demanding driving environments.

Overview

ACT HD/Race Sprung 6 Pad Kit

TC4-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 15
  • Torque Capacity (ft/lbs.): 500
  • Torque Capacity Over OE: 0.69
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1989-1993 Toyota Celica

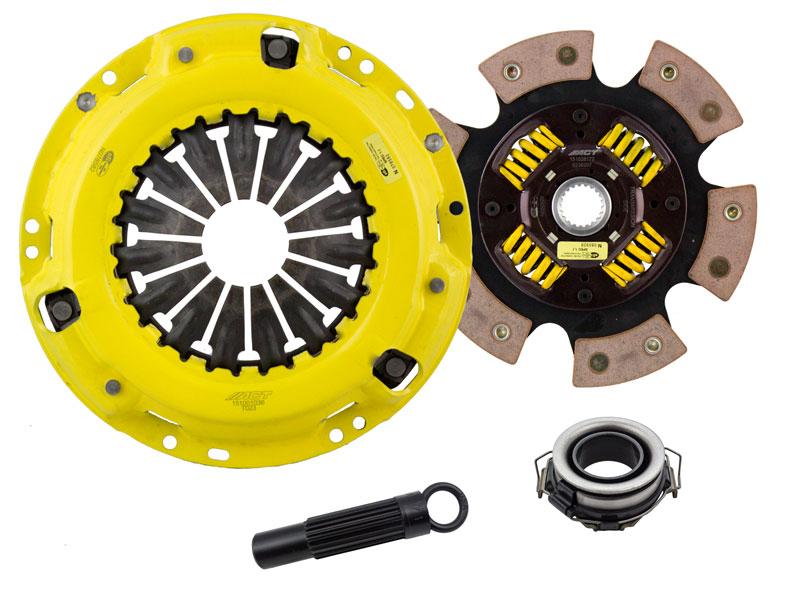

What's In The Box?

  • Clutch Friction Disc (6236207)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB446)
  • Clutch Pressure Plate (T023)

References

Warranty

  • Manufacturer 1 Year Warranty
