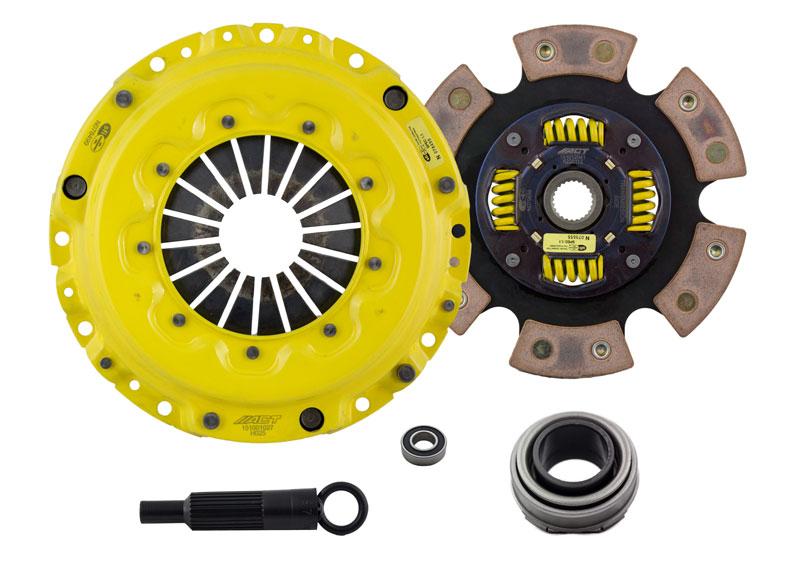

• ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Acura Integra (90-91) (AI2-HDG6)
1 1

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Acura Integra (90-91) (AI2-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Acura Integra (90-91) (AI2-HDG6)

AI2-HDG6

In stock

$561.00 USD
$693.00 USD $561.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Acura Integra (90-91) is a high-performance clutch upgrade designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, constructed with an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The included 6-pad, spring-centered race disc is engineered to damp torsional vibrations effectively, providing smooth engagement and reliable power transfer. Built with precision cover stampings, this clutch kit offers enhanced rigidity and stability, making it suitable for aggressive street and track use.

Designed specifically for 1990-1991 Acura Integra models, this clutch kit is compatible with stock or upgraded flywheels and is ideal for high-performance applications requiring increased clamping force. It is a direct replacement for the factory clutch, offering improved holding capacity and longevity under increased power loads. The kit is suitable for street, track, or racing environments where durability and consistent engagement are critical. Installation involves standard bolt-on procedures, and the components included are the pressure plate and race disc, ensuring a straightforward upgrade for enthusiasts seeking enhanced clutch performance.

Overview

ACT HD/Race Sprung 6 Pad Kit

AI2-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 13.1
  • Torque Capacity (ft/lbs.): 310
  • Torque Capacity Over OE: 0.68
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.7
  • Clutch Disc Diameter (mm): 220
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1990-1991 Acura Integra

What's In The Box?

  • Clutch Friction Disc (6220112)
  • Clutch Alignment Tool (AT87)
  • Clutch Pressure Plate (H025)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB837)

References

Warranty

  • Manufacturer 1 Year Warranty
