ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Honda Prelude (90-91) (HP4-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Honda Prelude (90-91) (HP4-HDG6)

HP4-HDG6

Out of stock

$769.00 USD
$769.00 USD $769.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and reliable power transfer. Built with precision cover stampings, this clutch assembly offers enhanced rigidity and stability, making it suitable for high-stress applications.

This clutch kit is specifically engineered for Honda Prelude models from 1990 to 1991. It serves as a direct replacement and upgrade for stock clutch components, ideal for street and track use where increased durability and performance are required. The assembly is designed for bolt-on installation, ensuring compatibility with the stock flywheel and transmission setup. The kit includes all necessary components for installation, providing a comprehensive solution for enthusiasts seeking improved clutch performance. Suitable for high-performance driving, this clutch kit delivers increased clamp load and longevity for spirited street driving or competitive racing scenarios.

Overview

ACT HD/Race Sprung 6 Pad Kit

HP4-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Clutch Disc Diameter (in.): 8.7
  • Clutch Disc Diameter (mm): 220
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1.03125
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 13.5
  • Torque Capacity (ft/lbs.): 310
  • Torque Capacity Over OE: 0.83
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes

Applications

  • 1990-1991 Honda Prelude

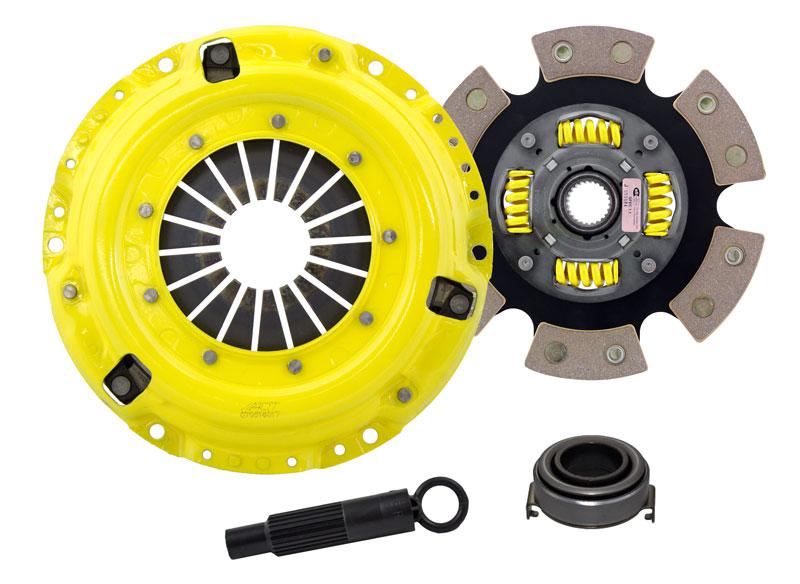

What's In The Box?

  • Clutch Friction Disc (6220110)
  • Clutch Alignment Tool (AT58)
  • Clutch Pressure Plate (H020)
  • Clutch Release Bearing (RB817)

References

Warranty

  • Manufacturer 1 Year Warranty
