ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Nissan Stanza (90-92) (NA1-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Nissan Stanza (90-92) (NA1-HDG6)

NA1-HDG6

In stock

$509.00 USD
$629.00 USD $509.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for Nissan Stanza (90-92) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT’s most popular Heavy Duty pressure plate, utilizing an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance. The kit includes a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and enhanced control during aggressive driving. Constructed with precision cover stampings, this clutch assembly offers rigidity and reliability, making it suitable for racing and heavy-duty applications.

This clutch kit is specifically designed to fit 1990-1992 Nissan Stanza models with compatible engine configurations. It serves as a direct replacement or upgrade for stock clutch components, ideal for street, track, or performance driving. Installation involves bolt-on replacement of the existing clutch system, with all necessary components included in the kit. The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit ensures maximum clamping force and longevity under high-stress conditions, making it a reliable choice for enthusiasts seeking enhanced performance and durability in their Nissan Stanza.

Overview

ACT HD/Race Sprung 6 Pad Kit

NA1-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 14.4
  • Torque Capacity (ft/lbs.): 350
  • Torque Capacity Over OE: 0.97
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1990-1992 Nissan Stanza

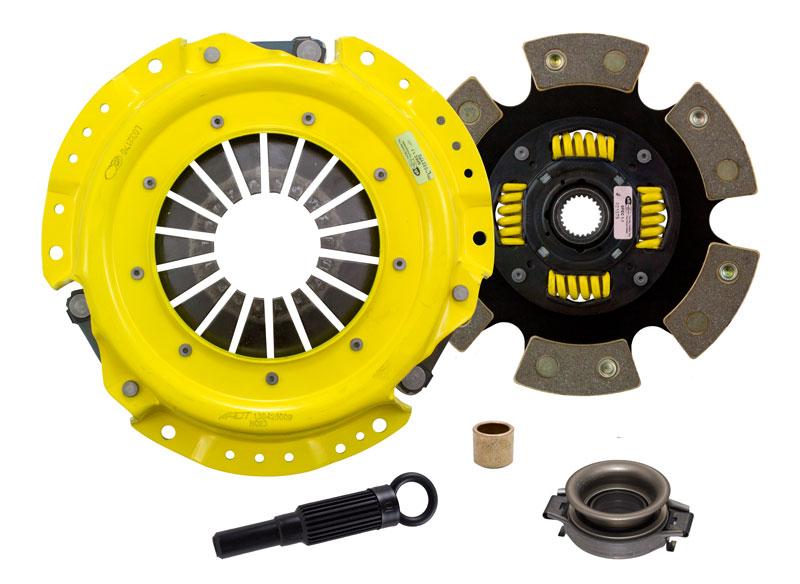

What's In The Box?

  • Clutch Friction Disc (6224106)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N023)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB816)

References

Warranty

  • Manufacturer 1 Year Warranty
