• ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Corolla (91-92) (TL3-HDG6)
1 1

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Corolla (91-92) (TL3-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Corolla (91-92) (TL3-HDG6)

TL3-HDG6

Out of stock

$649.00 USD
$649.00 USD $649.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and reliable power transfer. Constructed with precision cover stampings, this clutch assembly offers enhanced rigidity and stability, making it suitable for aggressive driving and track use.

This clutch kit is compatible with Toyota Corolla models from 1991 to 1992. It is intended as a direct replacement upgrade for stock clutch systems, offering increased clamping force and durability for street and race applications. The assembly is designed for bolt-on installation, requiring no modifications for proper fitment. Ideal for enthusiasts seeking improved performance and longevity, this clutch kit is suitable for high-stress driving environments, including racing and spirited street driving. The kit provides all necessary components for installation, ensuring a straightforward upgrade process for compatible Corolla models.

Overview

ACT HD/Race Sprung 6 Pad Kit

TL3-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 11.2
  • Torque Capacity (ft/lbs.): 265
  • Torque Capacity Over OE: 0.86
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1991-1992 Toyota Corolla

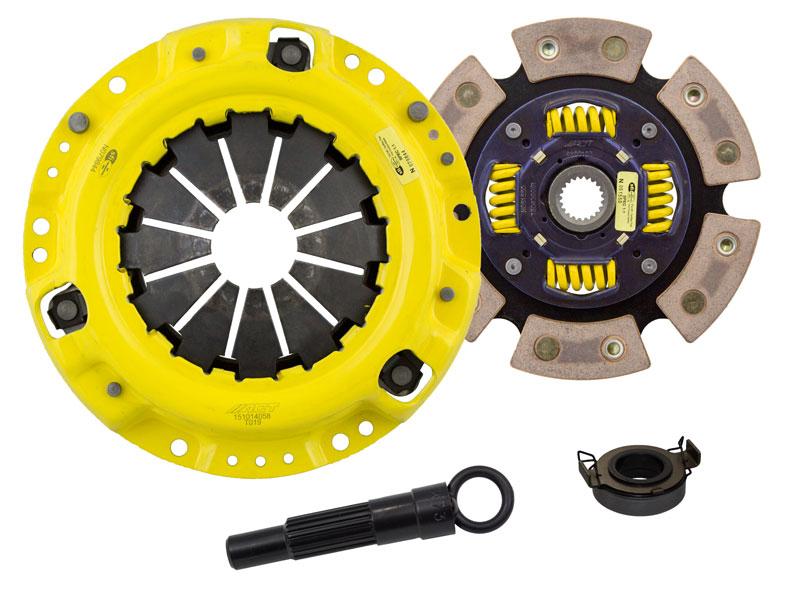

What's In The Box?

  • Clutch Friction Disc (6200103)
  • Clutch Alignment Tool (ATK73)
  • Clutch Release Bearing (RB840)
  • Clutch Pressure Plate (T019)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
