ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Acura Integra (92-93) (AI3-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Acura Integra (92-93) (AI3-HDG6)

AI3-HDG6

In stock

$561.00 USD
$693.00 USD $561.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Acura Integra (92-93) is a high-performance clutch upgrade designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process to ensure durability and consistent performance. The clutch disc is a 6-pad, spring-centered race design that effectively dampens torsional vibrations, providing smooth engagement and enhanced power transfer. Constructed with precision cover stampings, this clutch kit offers rigidity and reliability for spirited driving and track use.

Designed specifically for 1992-1993 Acura Integra models, this clutch kit is compatible with the AI3 chassis code. It is intended for performance applications, including street and track use, where increased clamping force and durability are essential. The kit is a direct replacement for stock components, ensuring straightforward installation. It includes the heavy-duty pressure plate and race disc, providing a complete upgrade for improved clutch performance. Suitable for vehicles with modified or stock engines, this clutch kit enhances torque capacity and pedal feel, making it ideal for enthusiasts seeking reliable, high-performance clutch solutions.

Overview

ACT HD/Race Sprung 6 Pad Kit

AI3-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1.03125
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 13.1
  • Torque Capacity (ft/lbs.): 310
  • Torque Capacity Over OE: 0.68
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.7
  • Clutch Disc Diameter (mm): 220
  • Disc Material: Ceramic

Applications

  • 1992-1993 Acura Integra

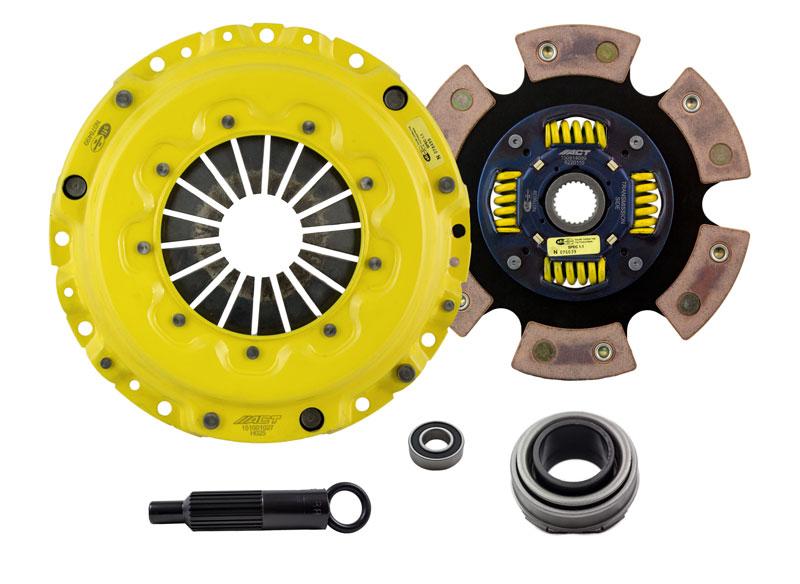

What's In The Box?

  • Clutch Friction Disc (6220110)
  • Clutch Alignment Tool (AT88)
  • Clutch Pressure Plate (H025)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB837)

References

Warranty

  • Manufacturer 1 Year Warranty
