ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Honda Civic del Sol (96-97) (HC8-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Honda Civic del Sol (96-97) (HC8-HDG6)

HC8-HDG6

In stock

$620.00 USD
$620.00 USD $620.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Honda Civic del Sol (96-97) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under high-stress applications. The kit includes a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and reliable power transfer. Constructed with precision cover stampings, this clutch kit delivers increased rigidity and stability, making it ideal for spirited street driving or track use.

Designed specifically for 1996-1997 Honda Civic del Sol models, this clutch kit is a direct replacement upgrade for stock components. It is suitable for vehicles equipped with high-performance or modified engines requiring enhanced clamping force and durability. The assembly is a bolt-on installation, compatible with the stock flywheel and transmission setup, and does not require additional modifications. The kit provides a comprehensive solution for drivers seeking improved clutch performance, whether for daily driving, racing, or aggressive street use. Its robust construction and engineered damping make it a reliable choice for maximizing power handling and clutch longevity in performance applications.

Overview

ACT HD/Race Sprung 6 Pad Kit

HC8-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Part Fitment Requirement: Must be used with factory flywheel.
  • Product Weight (lbs.): 10.8
  • Torque Capacity (ft/lbs.): 270
  • Torque Capacity Over OE: 0.76
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1996-1997 Honda Civic del Sol

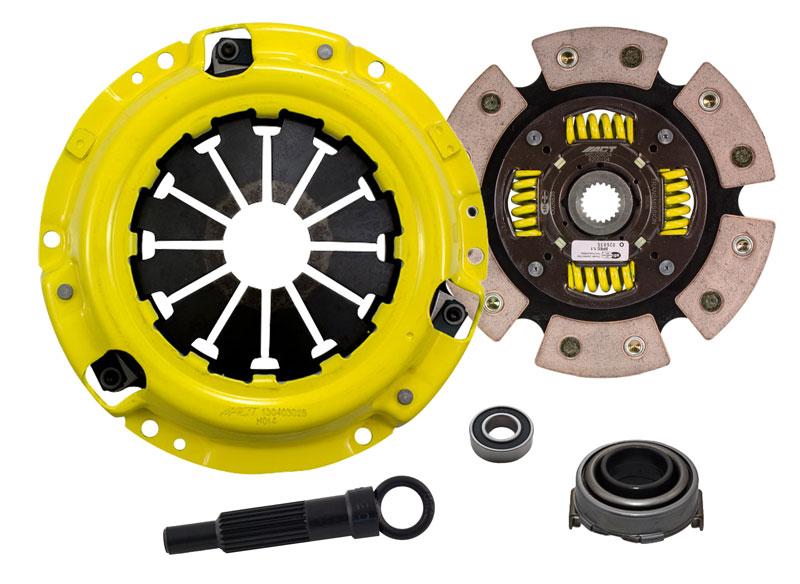

What's In The Box?

  • Clutch Friction Disc (6200104)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (H014)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB820)

References

Warranty

  • Manufacturer 1 Year Warranty
