• ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Ford Mustang (96-01) (FM7-HDG6)
1 1

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Ford Mustang (96-01) (FM7-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Ford Mustang (96-01) (FM7-HDG6)

FM7-HDG6

Out of stock

$539.00 USD
$665.00 USD $539.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Ford Mustang (96-01) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance. The kit includes a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and improved drivability. Constructed with precision cover stampings, this clutch assembly offers enhanced rigidity and reliability, making it suitable for aggressive street and track use.

Designed for 1996 to 2001 Ford Mustang models, this clutch kit is a direct replacement for stock components, offering increased holding capacity and durability for high-performance applications. It is ideal for enthusiasts seeking a robust upgrade for street, strip, or track driving, where increased torque capacity and longevity are essential. The kit is a bolt-on installation, compatible with the stock flywheel and clutch linkage, and includes all necessary components for a straightforward upgrade. Suitable for vehicles with modified or stock engines, this clutch kit delivers reliable performance under demanding conditions, ensuring optimal power transfer and longevity.

Overview

ACT HD/Race Sprung 6 Pad Kit

FM7-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 22.1
  • Torque Capacity (ft/lbs.): 620
  • Torque Capacity Over OE: 0.84
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 10.5
  • Clutch Disc Diameter (mm): 266
  • Disc Material: Ceramic
  • Input Spline Quantity: 10
  • Input Shaft Diameter (in.): 1.0625
  • Alignment Tool Included: Yes

Applications

  • 1996-2001 Ford Mustang GT & SVT Cobra

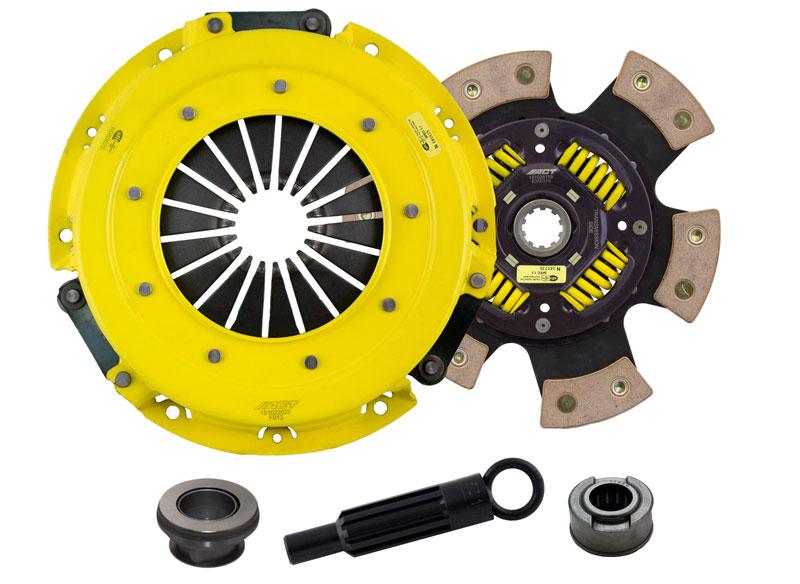

What's In The Box?

  • Clutch Friction Disc (6266319)
  • Clutch Alignment Tool (ATFC10)
  • Clutch Pressure Plate (F013)
  • Clutch Pilot Bearing (PB1019)
  • Clutch Release Bearing (RB1714)

References

Warranty

  • Manufacturer 1 Year Warranty
