• ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Ford Mustang (96-01) (FM8-HDG6)
1 1

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Ford Mustang (96-01) (FM8-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Ford Mustang (96-01) (FM8-HDG6)

FM8-HDG6

Out of stock

$539.00 USD
$665.00 USD $539.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Ford Mustang (96-01) is a high-performance clutch assembly designed for demanding driving conditions. This kit features ACT’s most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process to ensure durability and consistent performance. The clutch disc incorporates a 6-pad, spring-centered race design with a spring-center to effectively damp torsional vibrations, providing smooth engagement and enhanced control. Constructed with precision cover stampings, this assembly delivers increased rigidity and reliability for spirited driving and racing applications.

Designed specifically for 1996 to 2001 Ford Mustangs, this clutch kit is a direct replacement upgrade for stock components. It is suitable for street use, track days, and racing environments where increased clamping force and durability are essential. The kit is engineered for easy bolt-on installation, ensuring compatibility with the stock flywheel and transmission setup. It includes the heavy-duty pressure plate and race disc, providing a comprehensive solution for high-performance clutch needs. This assembly is ideal for enthusiasts seeking improved power transfer, longevity, and consistent engagement during aggressive driving.

Overview

ACT HD/Race Sprung 6 Pad Kit

FM8-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 22.1
  • Torque Capacity (ft/lbs.): 620
  • Torque Capacity Over OE: 0.84
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 10.5
  • Clutch Disc Diameter (mm): 266
  • Disc Material: Ceramic
  • Input Spline Quantity: 26
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1996-2001 Ford Mustang GT

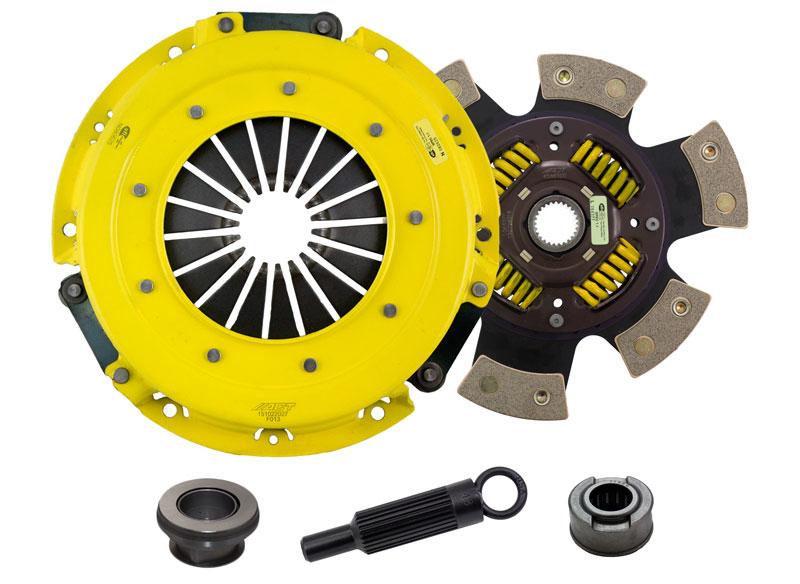

What's In The Box?

  • Clutch Pilot Bearing (PB1019)
  • Clutch Release Bearing (RB1714)
  • Clutch Friction Disc (6266320)
  • Clutch Alignment Tool (ATF048)
  • Clutch Pressure Plate (F013)

References

Warranty

  • Manufacturer 1 Year Warranty
