ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Ford Mustang (99-04) (FM9-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Ford Mustang (99-04) (FM9-HDG6)

FM9-HDG6

Out of stock

$659.00 USD
$813.00 USD $659.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, utilizing an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch lifespan. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under intense use. The kit includes a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and improved power transfer. Constructed with precision cover stampings, this clutch offers enhanced rigidity and reliability, making it suitable for aggressive street and track applications.

This clutch kit is specifically engineered for 1999-2004 Ford Mustangs, providing a direct upgrade for stock components. It is ideal for high-performance street driving, racing, or any application requiring increased clamping force and durability. The assembly is a bolt-on replacement, ensuring straightforward installation without modifications. The kit includes all necessary components for a complete upgrade, delivering improved torque capacity and pedal feel. Designed to withstand the rigors of spirited driving, this clutch kit enhances overall vehicle performance and longevity in demanding environments.

Overview

ACT HD/Race Sprung 6 Pad Kit

FM9-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 25.7
  • Torque Capacity (ft/lbs.): 770
  • Torque Capacity Over OE: 0.58
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 11
  • Clutch Disc Diameter (mm): 280
  • Disc Material: Ceramic
  • Input Spline Quantity: 26
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1999-2004 Ford Mustang GT & SVT Cobra

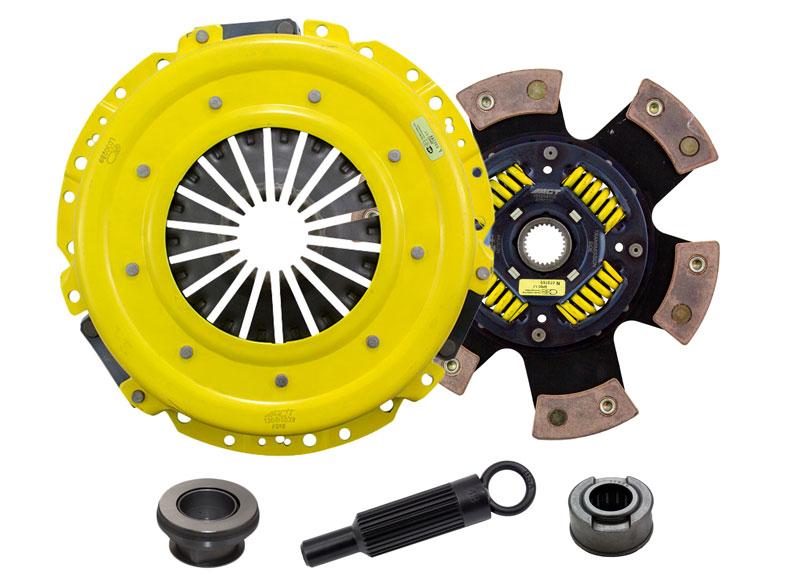

What's In The Box?

  • Clutch Friction Disc (6280320)
  • Clutch Alignment Tool (ATF048)
  • Clutch Pressure Plate (F015)
  • Clutch Pilot Bearing (PB1019)
  • Clutch Release Bearing (RB1714)

References

Warranty

  • Manufacturer 1 Year Warranty
