• ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Mazda RX-8 (04-11) (ZM8-HDG6)
1 1

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Mazda RX-8 (04-11) (ZM8-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Mazda RX-8 (04-11) (ZM8-HDG6)

ZM8-HDG6

In stock

$573.00 USD
$708.00 USD $573.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Mazda RX-8 (2004-2011) is a high-performance clutch upgrade designed for demanding driving conditions. This kit features ACT’s most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under high-stress applications. The clutch disc incorporates a 6-pad, spring-centered race design with a spring-center to effectively damp torsional vibrations, providing smoother engagement and improved response. Constructed with precision cover stampings, this clutch assembly offers enhanced rigidity and reliability, making it suitable for track use or aggressive street driving.

Designed specifically for the Mazda RX-8 from 2004 to 2011, this clutch kit is a direct replacement for stock components, providing increased holding capacity and improved durability. It is ideal for enthusiasts seeking a reliable upgrade for high-performance driving, including racing or spirited street use. The kit includes the heavy-duty pressure plate and clutch disc, ensuring proper fitment and optimal operation. Installation is straightforward for those familiar with clutch replacement procedures, and the components are engineered to withstand the rigors of high torque and heat. This clutch kit is an excellent choice for maximizing performance and longevity in demanding driving environments.

Overview

ACT HD/Race Sprung 6 Pad Kit

ZM8-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Part Fitment Requirement: Flywheel requires counterweight (flywheel and counterweight sold seperatly or with flywheel kit). Must use ACT counterweight with ACT flywheel.
  • Product Weight (lbs.): 15.9
  • Torque Capacity (ft/lbs.): 420
  • Torque Capacity Over OE: 0.72
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 2004-2011 Mazda RX-8

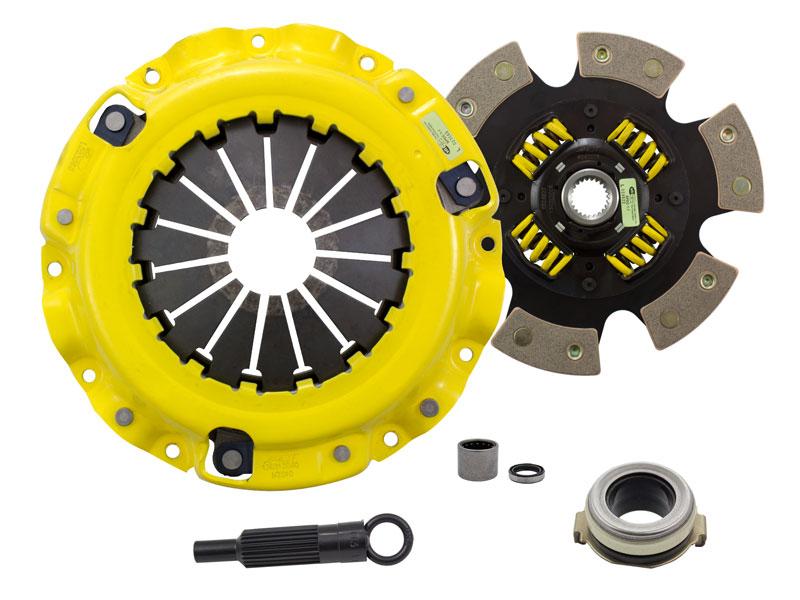

What's In The Box?

  • Clutch Pressure Plate (MZ010)
  • Clutch Pilot Bearing (PB1013)
  • Clutch Release Bearing (RB110)
  • Clutch Friction Disc (6240208)
  • Clutch Alignment Tool (AT03)

References

Warranty

  • Manufacturer 1 Year Warranty
