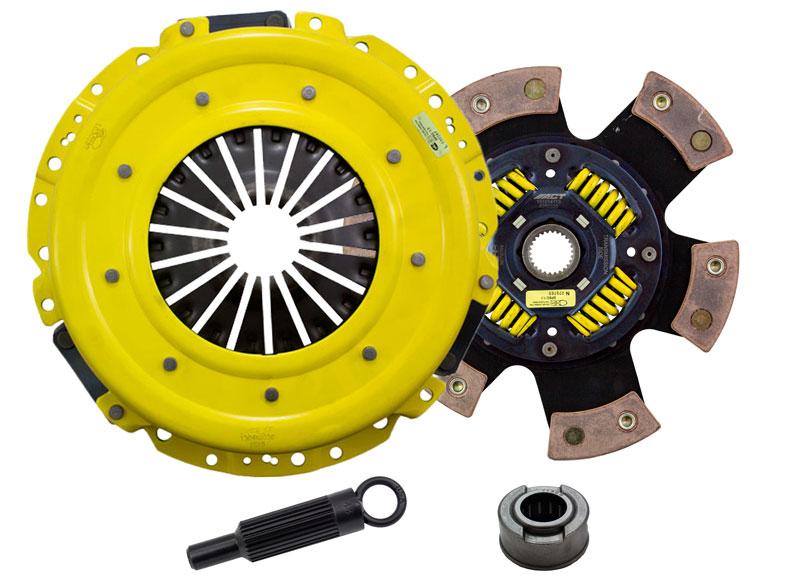

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Ford Mustang GT (05-10) (FM5-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Ford Mustang GT (05-10) (FM5-HDG6)

FM5-HDG6

Out of stock

$627.00 USD
$774.00 USD $627.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Ford Mustang GT (2005-2010) is a high-performance clutch system designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and enhanced control during aggressive driving. Constructed with precision cover stampings, this clutch assembly offers rigidity and reliability for track and street applications.

This clutch kit is specifically engineered for 2005-2010 Ford Mustang GT models, compatible with stock or upgraded flywheels. It is a direct replacement upgrade suitable for street, track, or racing use, delivering increased clamping force and durability under high-stress conditions. Installation involves bolt-on replacement of the stock clutch components, making it suitable for experienced enthusiasts and professional mechanics. The kit provides all necessary components for a complete upgrade, ensuring optimal performance and longevity. Designed to handle increased power and demanding driving scenarios, this clutch system enhances overall vehicle responsiveness and driving confidence.

Overview

ACT HD/Race Sprung 6 Pad Kit

FM5-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 29.4
  • Torque Capacity (ft/lbs.): 770
  • Torque Capacity Over OE: 0.85
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Clutch Disc Diameter (in.): 11
  • Clutch Disc Diameter (mm): 280
  • Disc Material: Ceramic
  • Input Spline Quantity: 26
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 2005-2010 Ford Mustang GT

What's In The Box?

  • Clutch Friction Disc (6280320)
  • Clutch Alignment Tool (ATF048)
  • Clutch Pressure Plate (F015)
  • Clutch Pilot Bearing (PB1019)

References

Warranty

  • Manufacturer 1 Year Warranty
