ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Scion xD (08-14) (SC1-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Scion xD (08-14) (SC1-HDG6)

SC1-HDG6

In stock

$559.00 USD
$690.00 USD $559.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit is a high-performance clutch assembly designed for enhanced durability and power handling. Featuring ACT's most popular Heavy Duty pressure plate, this kit utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a rigorous four-stage heat-treating process, ensuring superior performance and longevity. The 6-pad, spring-centered race disc is engineered to damp torsional vibrations effectively, providing smooth engagement and consistent power transfer. Constructed with precision cover stampings, this clutch delivers rigidity and stability under demanding conditions, making it ideal for spirited driving and racing applications.

Designed for 2008–2014 Scion xD models, this clutch kit is a direct replacement upgrade for stock components. It is suitable for vehicles subjected to increased power loads or aggressive driving styles, offering improved clamping force and durability. The kit is a bolt-on installation, compatible with the stock flywheel and clutch system, and includes all necessary components for a complete upgrade. This clutch assembly is optimized for street and track use, providing reliable performance and longer service life under high-stress conditions. Proper installation ensures maximum performance benefits and enhanced driving confidence.

Overview

ACT HD/Race Sprung 6 Pad Kit

SC1-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 12.5
  • Torque Capacity (ft/lbs.): 305
  • Torque Capacity Over OE: 0.69
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375

Applications

  • 2008-2014 Scion xD

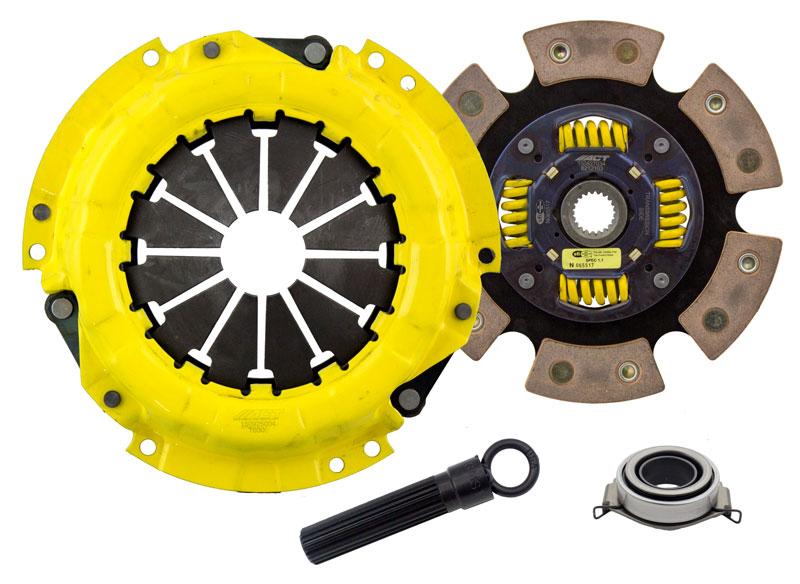

What's In The Box?

  • Clutch Friction Disc (6212103)
  • Clutch Release Bearing (RB124)
  • Clutch Pressure Plate (T030)

References

Warranty

  • Manufacturer 1 Year Warranty
