• ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Mazda 2 (11-14) (ZM9-HDG6)
1 1

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Mazda 2 (11-14) (ZM9-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Mazda 2 (11-14) (ZM9-HDG6)

ZM9-HDG6

Out of stock

$660.00 USD
$660.00 USD $660.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Mazda 2 (2011-2014) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and improved power transfer. Constructed with precision cover stampings, this clutch kit offers enhanced rigidity and reliability, making it suitable for spirited driving and track use.

Designed specifically for 2011-2014 Mazda 2 models, this clutch kit is a direct replacement for stock components, ensuring proper fitment and performance. It is ideal for enthusiasts seeking increased durability and performance in street or track applications. The assembly is a bolt-on upgrade that does not require modifications, providing a straightforward installation process. The kit includes all necessary components for a complete clutch replacement, delivering improved torque capacity and pedal feel. Suitable for high-performance driving, this clutch kit enhances the vehicle’s ability to handle increased power and demanding driving conditions.

Overview

ACT HD/Race Sprung 6 Pad Kit

ZM9-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 11.5
  • Torque Capacity (ft/lbs.): 250
  • Torque Capacity Over OE: 0.86
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 2011-2014 Mazda 2

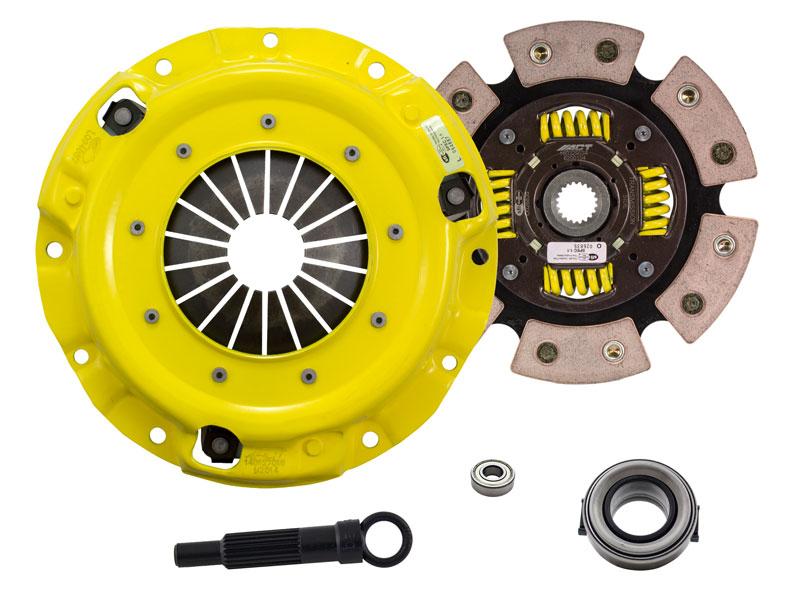

What's In The Box?

  • Clutch Friction Disc (6200104)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (MZ014)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB453)

References

Warranty

  • Manufacturer 1 Year Warranty
