ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Ford Mustang (11-17) (FM13-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Ford Mustang (11-17) (FM13-HDG6)

FM13-HDG6

Out of stock

$642.00 USD
$792.00 USD $642.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Ford Mustang (2011-2017) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate undergoes a rigorous four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, providing smoother engagement and improved drivability. Constructed with precision cover stampings, this clutch offers enhanced rigidity and reliability, making it suitable for both street and track use.

Designed specifically for 2011-2017 Ford Mustangs, this clutch kit is a direct replacement upgrade for stock components. It is ideal for high-performance applications, including racing and spirited street driving, where increased clamping force and durability are essential. The assembly is a bolt-on installation, requiring no additional modifications for proper fitment. The kit typically includes the pressure plate, clutch disc, and necessary hardware, ensuring a complete upgrade. Suitable for vehicles with stock or mildly modified engines, this clutch kit delivers consistent power transfer and longevity under demanding conditions.

Overview

ACT HD/Race Sprung 6 Pad Kit

FM13-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Part Fitment Requirement: Must use conversion dowels included with pressure plate if installing clutch kit on OE flywheel.
  • Product Weight (lbs.): 29.4
  • Torque Capacity (ft/lbs.): 770
  • Torque Capacity Over OE: 0.85
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Clutch Disc Diameter (in.): 11
  • Clutch Disc Diameter (mm): 280
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 2011-2017 Ford Mustang GT

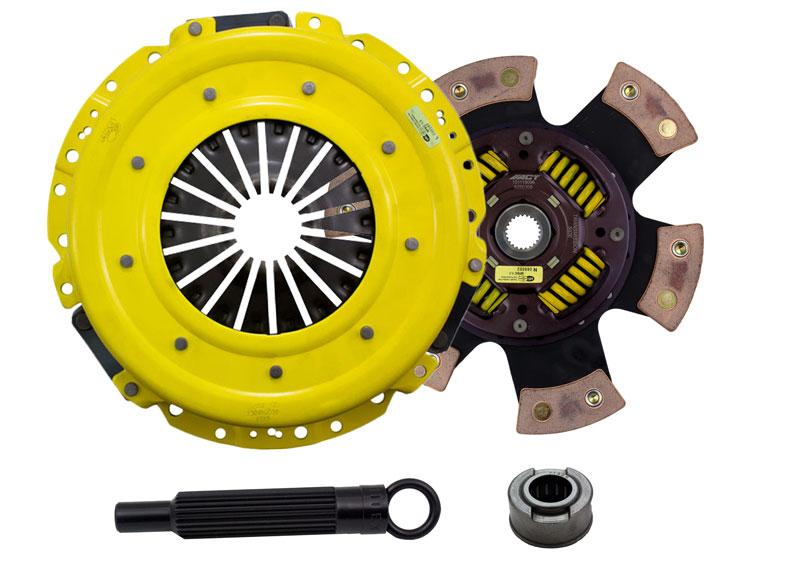

What's In The Box?

  • Clutch Friction Disc (6280308)
  • Clutch Alignment Tool (AT111EX)
  • Clutch Pressure Plate (F015)
  • Clutch Pilot Bearing (PB1019)

References

Warranty

  • Manufacturer 1 Year Warranty
