• ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Audi A6 Quattro (00-04) / S4 Base / S4 Avant (00-02) (AA6-HDG6)
1 1

ACT HD Race 6 Pad Clutch Kit | Audi A6 Quattro/S4 (00-04) (AA6-HDG6)

ACT HD Race 6 Pad Clutch Kit | Audi A6 Quattro/S4 (00-04) (AA6-HDG6)

AA6-HDG6

Out of stock

$1,661.00 USD
$2,050.00 USD $1,661.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT HD Race 6 Pad Clutch Kit for the Audi A6 Quattro and S4 (2000-2004) is a high-performance clutch upgrade designed for demanding driving conditions. This kit includes ACT's most popular Heavy Duty pressure plate, featuring an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under stress. The kit also incorporates a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and enhanced power transfer. Constructed with precision cover stampings, this clutch assembly delivers increased rigidity and reliability, making it suitable for spirited driving and track use.

Designed specifically for 2000-2004 Audi A6 Quattro and S4 models, this clutch kit is a direct replacement for stock components, offering improved holding capacity and durability. It is ideal for enthusiasts seeking a reliable upgrade for street or track applications, where increased clamping force and heat resistance are critical. Installation involves bolt-on replacement of the existing clutch components, with all necessary parts included in the kit. This setup is compatible with the stock flywheel and requires standard mechanical skills for proper installation. The ACT HD Race 6 Pad Clutch Kit enhances overall drivetrain performance, ensuring consistent clutch engagement during aggressive driving or high-power modifications.

Overview

ACT HD/Race Sprung 6 Pad Kit

AA6-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Flywheel Mounting Hole Quantity: 8
  • Flywheel Tooth Quantity: 135
  • Flywheel Type: Streetlite
  • Part Fitment Requirement: Conversion kit. Must use ACT flywheel (included in kit).
  • Product Weight (lbs.): 30
  • Torque Capacity (ft/lbs.): 590
  • Torque Capacity Over OE: 0.71
  • Flywheel Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 2000-2002 Audi S4
  • 2000-2004 Audi A6 Quattro
  • 2001-2005 Audi Allroad Quattro

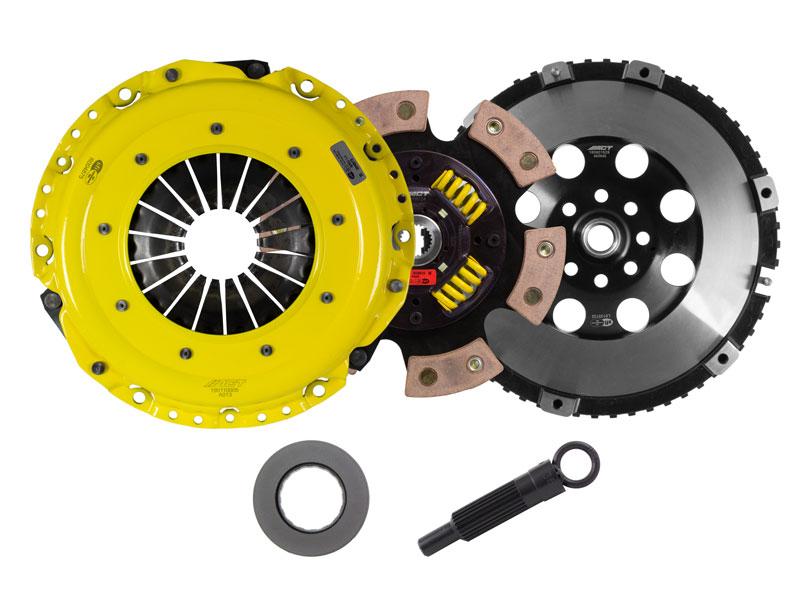

What's In The Box?

  • Clutch Flywheel (600940)
  • Clutch Friction Disc (6240527C)
  • Clutch Pressure Plate (A013)
  • Clutch Alignment Tool (AT36)
  • Clutch Pilot Bearing (PB1009)
  • Clutch Release Bearing (RB1301)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
