ACT HD/Race Sprung 6 Pad Kit | Multiple Fitments (DN2-HDG6)

ACT HD/Race Sprung 6 Pad Kit

DN2-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

• Input Spline Quantity: 17
• Input Shaft Diameter (in.): 0.9375
• Alignment Tool Included: Yes
• Part Fitment Requirement: Conversion Kit - Replaces modular clutch. Must use ACT flywheel (included in kit).
• Product Weight (lbs.): 21.4
• Torque Capacity (ft/lbs.): 395
• Torque Capacity Over OE: 1.12
• Flywheel Included: Yes
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 8.8
• Clutch Disc Diameter (mm): 224
• Disc Material: Ceramic

Applications

• 1995-1999 Chrysler Sebring
• 1996-2005 Dodge Neon
• 1995-1999 Mitsubishi Eclipse
• 2001-2006 Chrysler PT Cruiser
• 1995-1999 Dodge Avenger
• 1995-1998 Eagle Talon

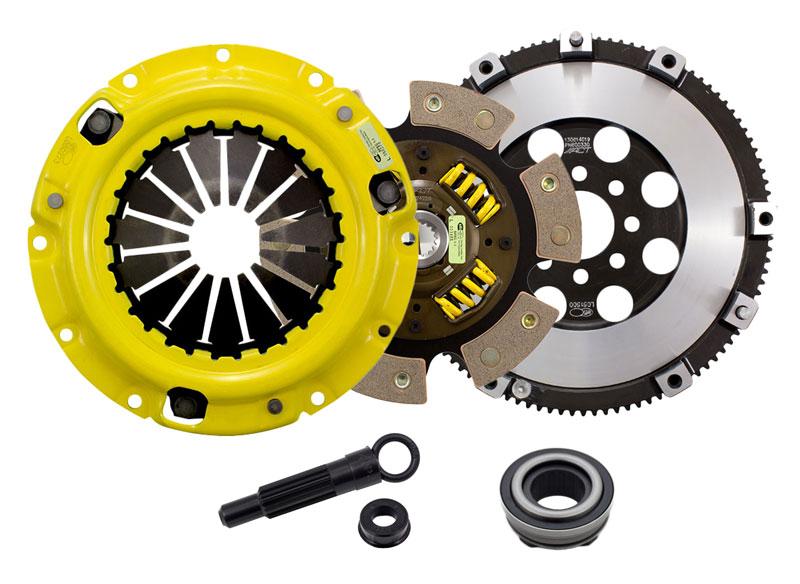

What's In The Box?

• Clutch Flywheel (600330)
• Clutch Friction Disc (6224226)
• Clutch Alignment Tool (ATCP2)
• Clutch Pressure Plate (D016)
• Clutch Release Bearing (RB408)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
