• ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Ford Mustang (93) (FM1-HDG6)
1 1

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Ford Mustang (93) (FM1-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Ford Mustang (93) (FM1-HDG6)

FM1-HDG6

Out of stock

$539.00 USD
$665.00 USD $539.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Ford Mustang (93) is a high-performance clutch assembly designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, constructed with an exclusive diaphragm design that increases clamp load, reduces deflection, and enhances overall clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme stress. The inclusion of a 6-pad, spring-centered race disc provides effective torsional vibration damping, contributing to smoother engagement and improved power transfer. Built with precision cover stampings, this clutch assembly offers rigidity and reliability, making it suitable for high-performance applications.

Designed for 1993 Ford Mustangs, this clutch kit is compatible with various engine configurations and is intended for street, track, or racing use. It serves as a direct replacement for stock components, providing increased clamping force and durability for aggressive driving. The kit includes the heavy-duty pressure plate and race disc, ensuring a straightforward installation process. Ideal for enthusiasts seeking enhanced performance and longevity, this clutch kit is engineered to withstand high torque loads and intense driving conditions, making it a reliable upgrade for performance-oriented Mustang owners.

Overview

ACT HD/Race Sprung 6 Pad Kit

FM1-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 22.1
  • Torque Capacity (ft/lbs.): 620
  • Torque Capacity Over OE: 0.84
  • Pressure Plate Type: Heavy Duty
  • Clutch Disc Diameter (in.): 10.5
  • Clutch Disc Diameter (mm): 266
  • Disc Material: Ceramic
  • Input Spline Quantity: 10
  • Input Shaft Diameter (in.): 1.0625

Applications

  • 1986-1995 Ford Mustang GT, LX, SVT Cobra

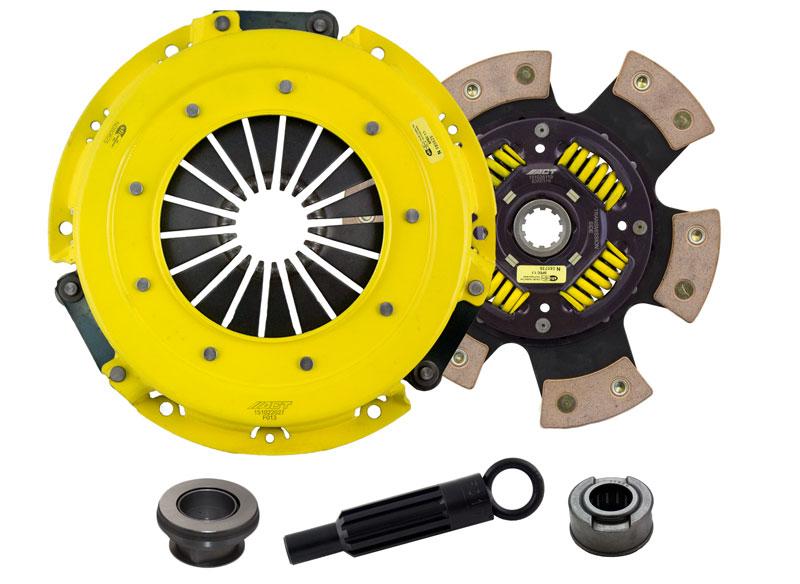

What's In The Box?

  • Clutch Friction Disc (6266319)
  • Clutch Alignment Tool (ATFC10)
  • Clutch Pressure Plate (F013)
  • Clutch Pilot Bearing (PB1019)
  • Clutch Release Bearing (RB1714)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
