• ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Acura CL (97) (HA3-HDG6)
1 1

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Acura CL (97) (HA3-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Acura CL (97) (HA3-HDG6)

HA3-HDG6

In stock

$539.00 USD
$666.00 USD $539.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Acura CL (97) is a high-performance clutch assembly designed for demanding driving conditions. This kit includes ACT's most popular Heavy Duty pressure plate, featuring an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under intense use. The clutch disc is a 6-pad, spring-centered race component that effectively dampens torsional vibrations, providing smooth engagement and reliable power transfer. Constructed with precision cover stampings, this assembly delivers increased rigidity and stability, making it ideal for track days, spirited driving, or heavy-duty applications.

Designed for 1997 Acura CL models, this clutch kit is a direct replacement upgrade for stock components. It is suitable for vehicles subjected to high-performance driving, including racing and aggressive street use. The kit is a bolt-on installation, requiring no modifications for proper fitment. It includes the pressure plate, clutch disc, and necessary hardware, ensuring a complete upgrade. Compatible with stock or lightly modified engines, this clutch assembly enhances torque capacity and overall durability, making it an excellent choice for drivers seeking improved clutch performance and longevity in demanding driving scenarios.

Overview

ACT HD/Race Sprung 6 Pad Kit

HA3-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 13.5
  • Torque Capacity (ft/lbs.): 355
  • Torque Capacity Over OE: 0.8
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1.03125
  • Alignment Tool Included: Yes

Applications

  • 1990-2002 Honda Accord
  • 1992-2001 Honda Prelude
  • 1997-1999 Acura CL

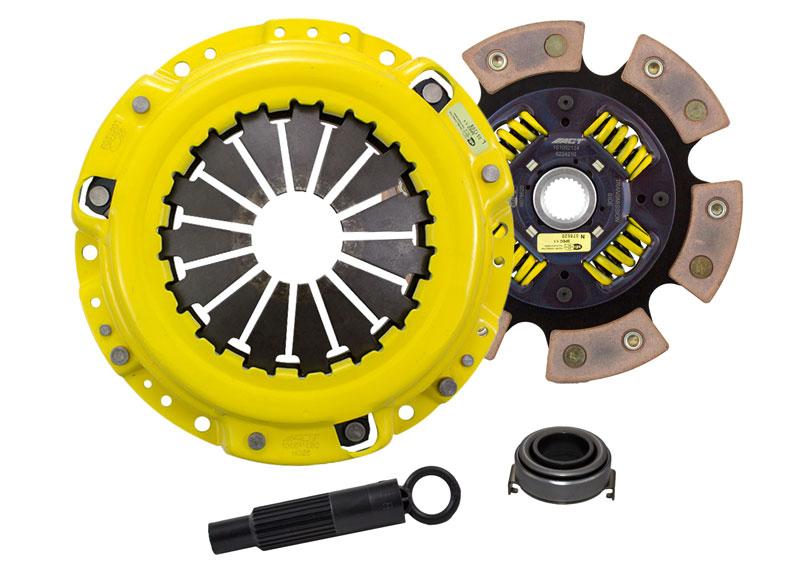

What's In The Box?

  • Clutch Friction Disc (6224210)
  • Clutch Alignment Tool (AT58)
  • Clutch Pressure Plate (H026)
  • Clutch Release Bearing (RB817)

References

Warranty

  • Manufacturer 1 Year Warranty
