ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Honda Civic (1989) (HC3-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Honda Civic (1989) (HC3-HDG6)

HC3-HDG6

Out of stock

$613.00 USD
$613.00 USD $613.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Honda Civic (1989) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under stress. The kit includes a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and enhanced control during aggressive driving. Constructed with precision cover stampings, this clutch assembly offers rigidity and reliability, making it suitable for track use or high-performance street applications.

Designed specifically for the 1989 Honda Civic, this clutch kit is a direct replacement upgrade for stock components. It is ideal for enthusiasts seeking increased clamping force and durability for spirited driving, racing, or heavy-duty use. The kit is a bolt-on installation, compatible with the stock flywheel and transmission setup, ensuring straightforward installation without modifications. It includes all necessary components for a complete clutch replacement, providing a reliable solution for improved power transfer and longevity. Suitable for use in street, track, or performance-oriented driving scenarios, this clutch kit delivers consistent performance and enhanced driving confidence.

Overview

ACT HD/Race Sprung 6 Pad Kit

HC3-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Part Fitment Requirement: Must be used with factory flywheel.
  • Product Weight (lbs.): 10.8
  • Torque Capacity (ft/lbs.): 270
  • Torque Capacity Over OE: 0.76
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1989-1989 Honda Civic
  • 1989-1989 Honda CRX

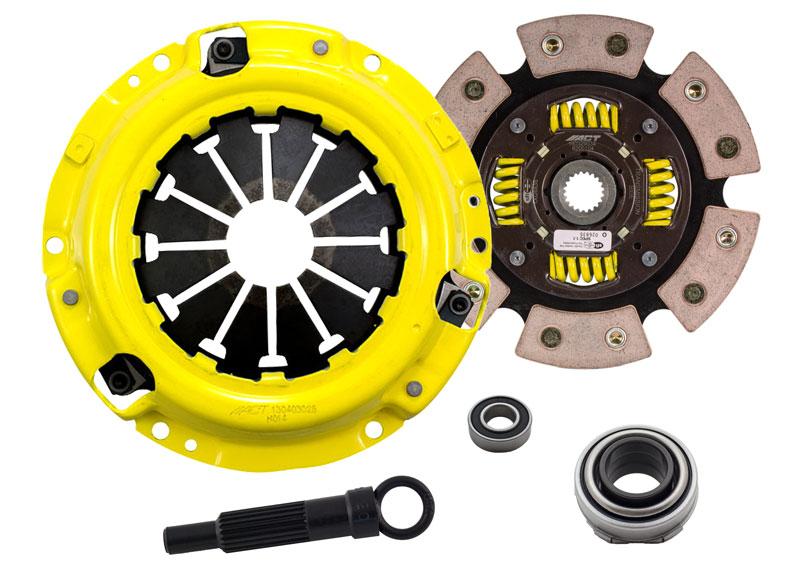

What's In The Box?

  • Clutch Friction Disc (6200104)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (H014)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB427)

References

Warranty

  • Manufacturer 1 Year Warranty
