• ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Hyundai Tiburon (03) (HY1-HDG6)
1 1

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Hyundai Tiburon (03) (HY1-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Hyundai Tiburon (03) (HY1-HDG6)

HY1-HDG6

Out of stock

$680.00 USD
$680.00 USD $680.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Hyundai Tiburon (03) is a high-performance clutch upgrade designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under intense use. The inclusion of a 6-pad, spring-centered race disc provides optimal damping of torsional vibrations, enhancing drivability and reducing shock loads on drivetrain components. Built with precision cover stampings, this clutch assembly offers increased rigidity and reliability, making it suitable for spirited street driving or track use.

Designed specifically for the 2003 Hyundai Tiburon, this clutch kit is a direct replacement for stock components, providing a significant upgrade in clamping force and durability. It is ideal for enthusiasts seeking improved performance and longevity in high-stress applications. The kit is suitable for street, track, or light racing environments where increased torque capacity is required. Installation involves bolt-on replacement of the existing clutch components, with all necessary parts included for a straightforward upgrade. This clutch kit ensures reliable engagement and smooth operation, making it a trusted choice for performance-oriented drivers looking to maximize their vehicle’s clutch performance.

Overview

ACT HD/Race Sprung 6 Pad Kit

HY1-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 12.7
  • Torque Capacity (ft/lbs.): 305
  • Torque Capacity Over OE: 0.77
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.4
  • Clutch Disc Diameter (mm): 214
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875

Applications

  • 1996-2006 Hyundai Elantra
  • 1997-2008 Hyundai Tiburon

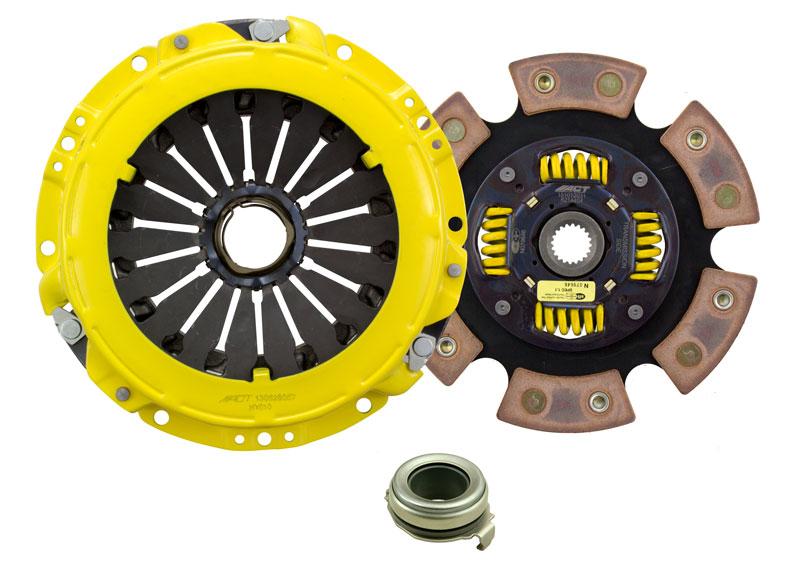

What's In The Box?

  • Clutch Friction Disc (6214404)
  • Clutch Pressure Plate (HY010)
  • Clutch Release Bearing (RB104)

References

Warranty

  • Manufacturer 1 Year Warranty
