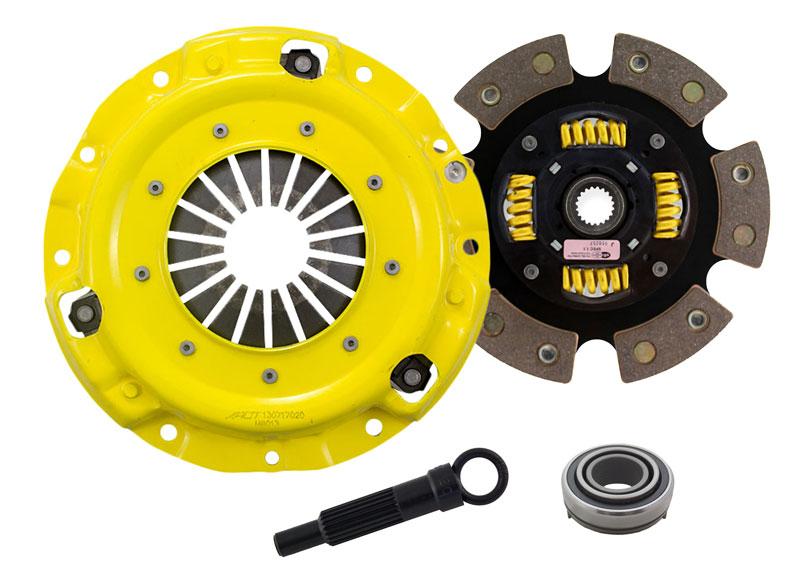

ACT HD/Race Sprung 6 Pad Kit | Multiple Fitments (MB4-HDG6)

ACT HD/Race Sprung 6 Pad Kit

MB4-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

• Product Weight (lbs.): 11.6
• Torque Capacity (ft/lbs.): 255
• Torque Capacity Over OE: 0.76
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 7.9
• Clutch Disc Diameter (mm): 200
• Disc Material: Ceramic
• Input Spline Quantity: 20
• Input Shaft Diameter (in.): 0.875
• Alignment Tool Included: Yes

Applications

• 1989-1996 Eagle Summit
• 1990-1993 Hyundai Excel
• 1992-1993 Hyundai Elantra
• 1976-1980 Plymouth Arrow
• 1979-1994 Dodge Colt
• 1990-1994 Hyundai Excel
• 1983-1988 Mitsubishi Cordia
• 1979-1979 Plymouth Sapporo
• 1979-1982 Plymouth Champ
• 1983-1988 Mitsubishi Tredia
• 1985-2002 Mitsubishi Mirage
• 1989-1993 Mitsubishi Precis
• 1993-1994 Eagle Talon
• 1990-1994 Plymouth Laser
• 1991-1995 Hyundai Scoupe
• 1990-1994 Mitsubishi Eclipse

What's In The Box?

• Clutch Friction Disc (6200104)
• Clutch Alignment Tool (AT20)
• Clutch Pressure Plate (MB013)
• Clutch Release Bearing (RB210)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
