• ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Chrysler Conquest 1987 (MS1-HDG6)
1 1

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Chrysler Conquest 1987 (MS1-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Chrysler Conquest 1987 (MS1-HDG6)

MS1-HDG6

In stock

$571.00 USD
$705.00 USD $571.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Chrysler Conquest 1987 is a high-performance clutch assembly designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, constructed with an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The 6-pad, spring-centered race disc is engineered to damp torsional vibrations effectively, providing smooth engagement and reliable power transfer. Built with precision cover stampings, this clutch kit offers rigidity and consistency essential for high-stress applications, making it suitable for racing and aggressive street driving.

Designed specifically for 1987 Chrysler Conquest models, this clutch kit is a direct replacement upgrade for stock components. It is compatible with vehicles equipped with the appropriate engine and chassis configurations, offering enhanced clamping force and durability for increased horsepower and torque. The kit is ideal for track use, high-performance street driving, or applications requiring a robust clutch solution. Installation involves bolt-on replacement of the existing clutch components, and the kit includes the pressure plate, clutch disc, and necessary hardware. This setup provides a reliable, high-quality upgrade for drivers seeking improved performance and longevity under demanding conditions.

Overview

ACT HD/Race Sprung 6 Pad Kit

MS1-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 16.2
  • Torque Capacity (ft/lbs.): 420
  • Torque Capacity Over OE: 0.72
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1987-1989 Mitsubishi Starion
  • 1987-1989 Chrysler Conquest

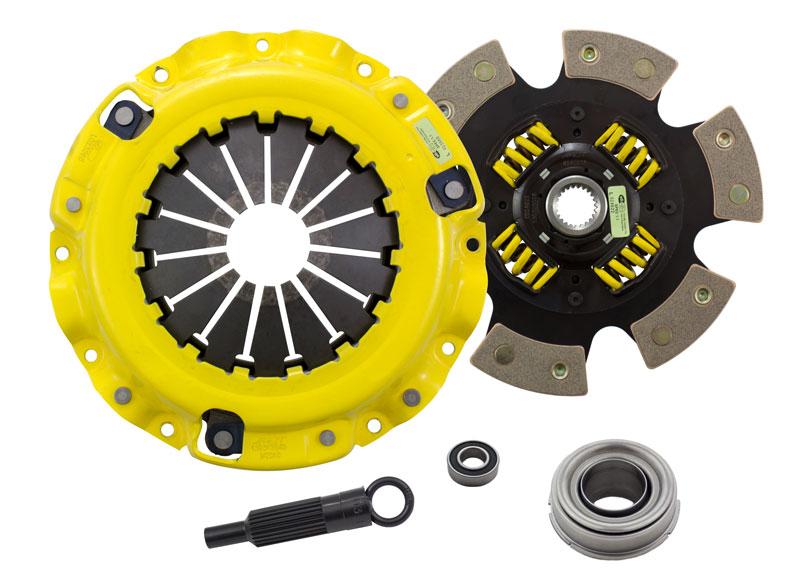

What's In The Box?

  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB422)
  • Clutch Friction Disc (6240208)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ010)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
