• ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Infiniti I30 (96) (NM1-HDG6)
1 1

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Infiniti I30 (96) (NM1-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Infiniti I30 (96) (NM1-HDG6)

NM1-HDG6

In stock

$604.00 USD
$746.00 USD $604.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Infiniti I30 (96) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT’s most popular Heavy Duty pressure plate, utilizing an exclusive diaphragm design that increases clamp load, reduces deflection, and enhances overall clutch longevity. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under stress. The kit includes a precision-made cover with stampings that provide rigidity and stability, along with a 6-pad, spring-centered race disc that effectively dampens torsional vibrations for smoother engagement and improved power transfer. This combination delivers increased clamping force and reliability, making it suitable for spirited driving and racing applications.

Designed specifically for the 1996 Infiniti I30, this clutch kit is a direct replacement upgrade for stock components. It is engineered to handle higher torque loads and aggressive driving styles, making it ideal for track days, street performance, or heavy-duty use. The assembly is a bolt-on installation that maintains OEM fitment and compatibility, ensuring straightforward setup without modifications. The kit includes all necessary components for installation, providing a comprehensive solution for enhanced clutch performance. Suitable for vehicles requiring a robust, high-capacity clutch, this ACT kit ensures improved durability and consistent engagement during intense driving conditions.

Overview

ACT HD/Race Sprung 6 Pad Kit

NM1-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Torque Capacity (ft/lbs.): 475
  • Torque Capacity Over OE: 0.9
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 16.7

Applications

  • 1985-2001 Nissan Maxima
  • 1996-1999 Infiniti I30

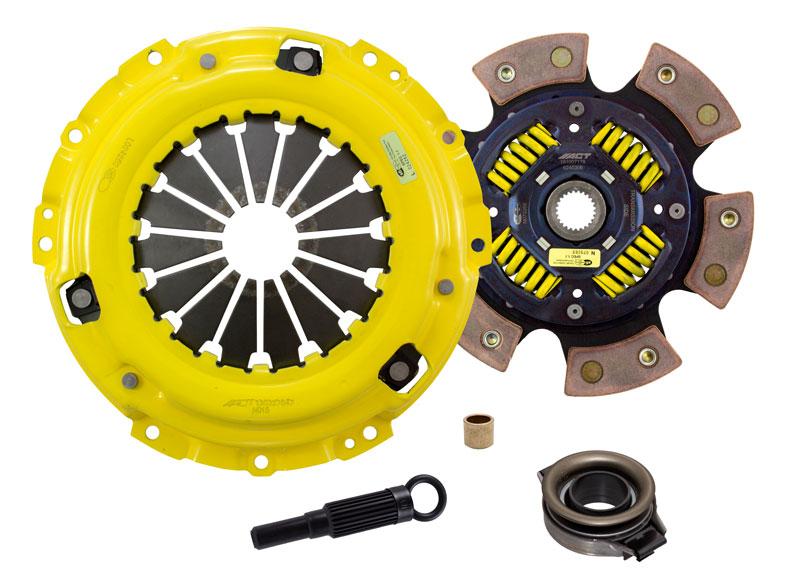

What's In The Box?

  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB809)
  • Clutch Friction Disc (6240306)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N015)

References

Warranty

  • Manufacturer 1 Year Warranty
