ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Corona (1971) (TC3-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Corona (1971) (TC3-HDG6)

TC3-HDG6

In stock

$619.00 USD
$619.00 USD $619.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Toyota Corona (1971) is a high-performance clutch assembly designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, utilizing an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance. The inclusion of a 6-pad, spring-centered race disc helps damp torsional vibrations, providing smoother engagement and enhanced control during aggressive driving. Constructed with precision cover stampings, this clutch kit offers rigidity and reliability, making it suitable for high-stress applications.

Designed specifically for the 1971 Toyota Corona, this clutch kit is a direct replacement and upgrade for stock components. It is ideal for street, track, or performance driving where increased clamping force and durability are required. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Compatible with vehicles equipped with the appropriate engine and chassis configuration, this clutch assembly delivers improved performance and longevity under demanding conditions. It is suitable for enthusiasts seeking a reliable, high-capacity clutch solution for spirited driving or racing applications.

Overview

ACT HD/Race Sprung 6 Pad Kit

TC3-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 14.8
  • Torque Capacity (ft/lbs.): 355
  • Torque Capacity Over OE: 0.89
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1971-1977 Toyota Corona
  • 1972-1974 Toyota Mark II
  • 1970-1972 Toyota Crown
  • 1972-1974 Toyota Celica

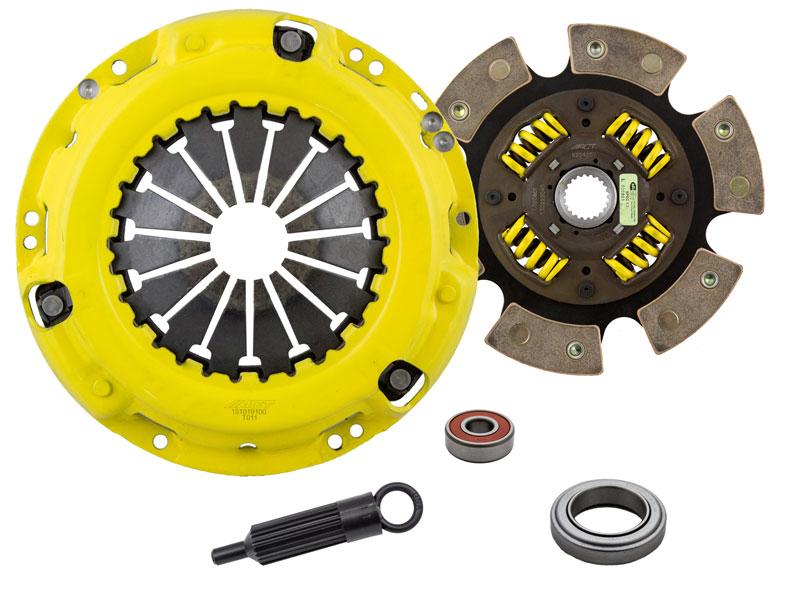

What's In The Box?

  • Clutch Friction Disc (6224207)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB005)
  • Clutch Pressure Plate (T011)

References

Warranty

  • Manufacturer 1 Year Warranty
