The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Toyota 4Runner (87) is a high-performance clutch upgrade designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which employs an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under stress. The clutch disc is a 6-pad, spring-centered race component that effectively dampens torsional vibrations, providing smooth engagement and enhanced control. Constructed with precision cover stampings, this assembly offers rigidity and reliability, making it suitable for aggressive driving and racing applications.

Designed specifically for the 1987 Toyota 4Runner, this clutch kit is a direct replacement for stock components, ensuring compatibility and ease of installation. It is ideal for off-road, street, or track use where increased clamping force and durability are required. The kit includes all necessary components for a complete upgrade, providing a reliable solution for high-performance driving scenarios. Suitable for vehicles with compatible engine configurations, this clutch kit enhances power transfer and pedal feel, making it a preferred choice for enthusiasts seeking improved clutch performance and longevity.

Overview

ACT HD/Race Sprung 6 Pad Kit

TC5-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 15
  • Torque Capacity (ft/lbs.): 355
  • Torque Capacity Over OE: 0.89
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1977-1985 Toyota Celica
  • 1977-1981 Toyota Corona
  • 1984-1988 Toyota 4Runner
  • 1978-1988 Toyota Pickup
  • 1986-1988 Toyota Van

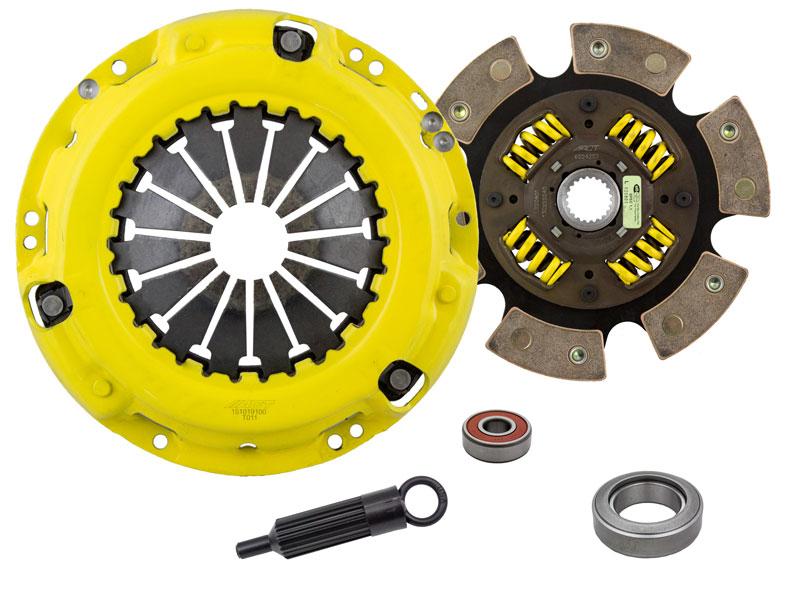

What's In The Box?

  • Clutch Friction Disc (6224207)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB201)
  • Clutch Pressure Plate (T011)

References

Warranty

  • Manufacturer 1 Year Warranty
