ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Camry (88) (TC6-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Camry (88) (TC6-HDG6)

TC6-HDG6

In stock

$732.00 USD
$732.00 USD $732.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Toyota Camry (88) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under stress. The kit includes a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and enhanced control. Constructed with precision cover stampings, this clutch assembly offers rigidity and reliability, making it suitable for racing or heavy-duty applications.

Designed for the 1988 Toyota Camry, this clutch kit is a direct replacement upgrade for stock components. It is ideal for street, track, or performance driving where increased clamping force and durability are required. The assembly is a bolt-on installation, compatible with the original flywheel and transmission setup. The kit provides all necessary components for a complete upgrade, ensuring optimal performance and longevity. Suitable for vehicles subjected to high torque loads or aggressive driving styles, this clutch kit enhances power transfer and driving confidence in demanding environments.

Overview

ACT HD/Race Sprung 6 Pad Kit

TC6-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 15.1
  • Torque Capacity (ft/lbs.): 400
  • Torque Capacity Over OE: 0.65
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1988-2006 Toyota Camry
  • 2002-2006 Toyota Solara
  • 2005-2006 Scion tC

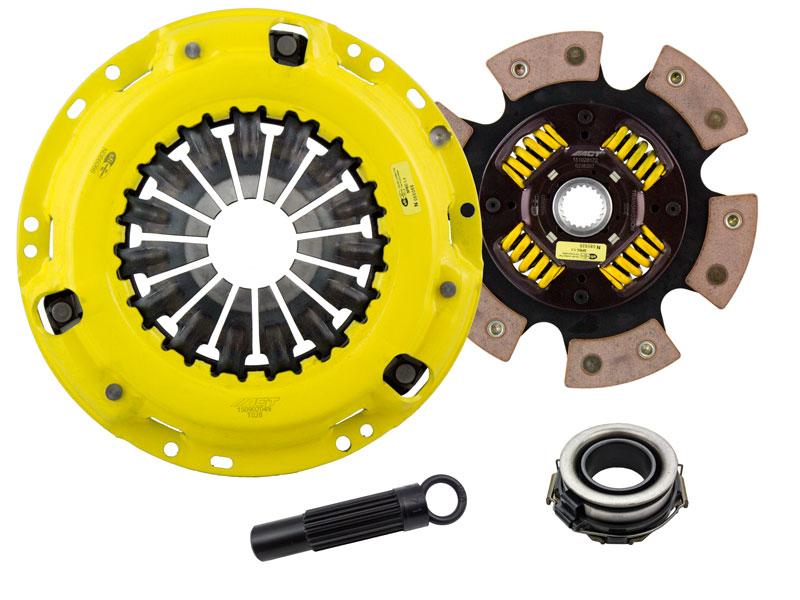

What's In The Box?

  • Clutch Friction Disc (6236207)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB219)
  • Clutch Pressure Plate (T028)

References

Warranty

  • Manufacturer 1 Year Warranty
