ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota 4Runner (87) (TS1-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota 4Runner (87) (TS1-HDG6)

TS1-HDG6

Out of stock

$578.00 USD
$714.00 USD $578.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Toyota 4Runner (87) is a high-performance clutch system designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and improved power transfer. Constructed with precision cover stampings, this clutch assembly offers enhanced rigidity and reliability for aggressive driving and racing applications.

This clutch kit is specifically engineered for the 1987 Toyota 4Runner equipped with suitable engine configurations. It serves as a direct replacement or upgrade for stock clutch components, delivering increased clamping force and durability under high-stress conditions. The kit is ideal for off-road, racing, or heavy-duty use, where maximum performance and longevity are required. Installation involves standard bolt-on procedures, and the components are designed to fit seamlessly within the factory clutch assembly. Suitable for street and track use, this clutch kit ensures reliable engagement and long-lasting performance in demanding environments.

Overview

ACT HD/Race Sprung 6 Pad Kit

TS1-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 17.1
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 0.69
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1982-1985 Toyota Celica
  • 1985-1987 Toyota Pickup
  • 1984-1987 Toyota Cressida
  • 1985-1987 Toyota 4Runner
  • 1986-1988 Toyota Supra

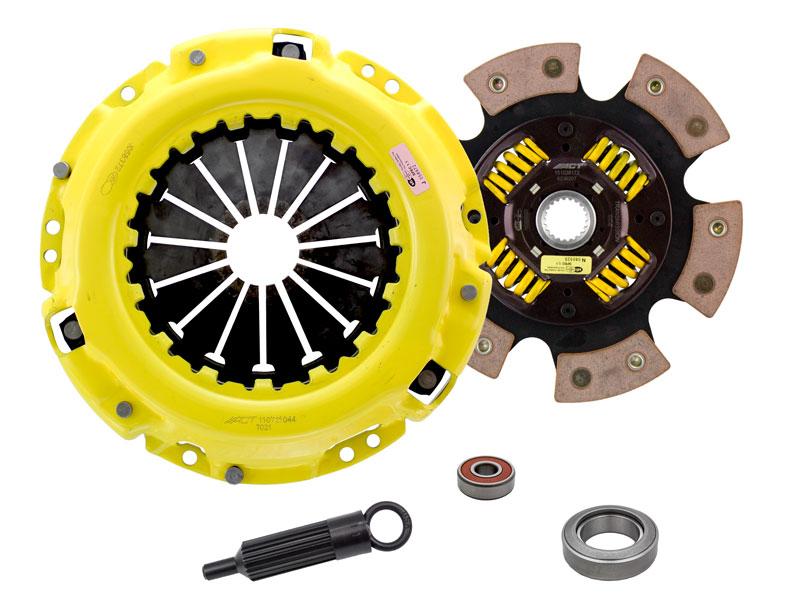

What's In The Box?

  • Clutch Friction Disc (6236207)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB201)
  • Clutch Pressure Plate (T021)

References

Warranty

  • Manufacturer 1 Year Warranty
