ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Echo (2000) (TS6-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Echo (2000) (TS6-HDG6)

TS6-HDG6

Out of stock

$559.00 USD
$690.00 USD $559.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Toyota Echo (2000) is a high-performance clutch assembly designed for demanding driving conditions. Featuring ACT's most popular Heavy Duty pressure plate, this kit utilizes an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under heavy use. The kit includes a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, providing smoother engagement and improved power transfer. Constructed with precision cover stampings, the components deliver rigidity and reliability, making it suitable for spirited driving and racing applications.

This clutch kit is specifically engineered for the 2000 Toyota Echo, serving as a direct replacement for stock components. It is ideal for street and track use where enhanced durability and performance are required. The assembly is bolt-on compatible with the factory flywheel and requires no additional modifications for installation. The kit provides a reliable upgrade for drivers seeking increased clamping force and longevity in high-stress environments. Suitable for use in applications demanding increased torque capacity, this clutch kit ensures consistent engagement and long-lasting performance for the vehicle’s drivetrain.

Overview

ACT HD/Race Sprung 6 Pad Kit

TS6-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 12.5
  • Torque Capacity (ft/lbs.): 305
  • Torque Capacity Over OE: 0.69
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375

Applications

  • 2007-2013 Toyota Yaris
  • 2000-2005 Toyota Echo
  • 2004-2006 Scion xA
  • 2004-2006 Scion xB

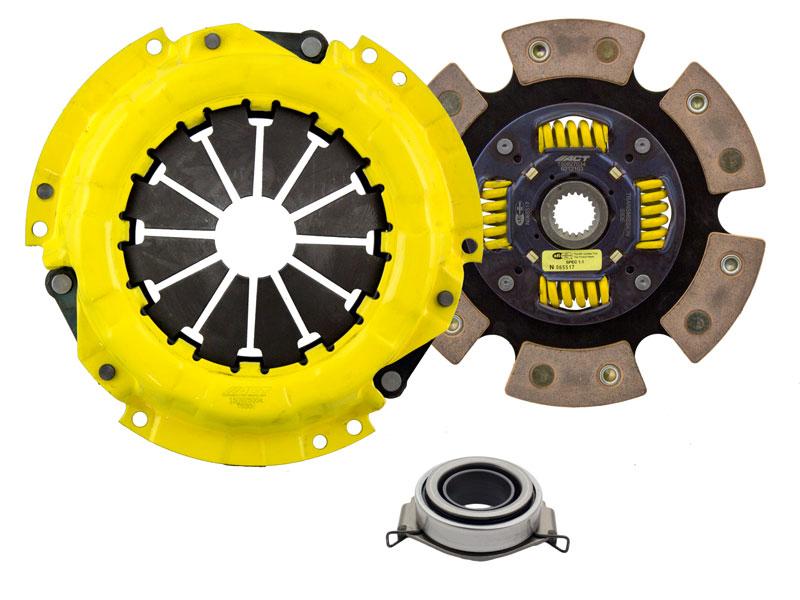

What's In The Box?

  • Clutch Release Bearing (RB124)
  • Clutch Pressure Plate (T030)
  • Clutch Friction Disc (6212103)

References

Warranty

  • Manufacturer 1 Year Warranty
