ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Camry (1988) (TY3-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Camry (1988) (TY3-HDG6)

TY3-HDG6

In stock

$610.00 USD
$753.00 USD $610.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Toyota Camry (1988) is a high-performance clutch assembly designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, utilizing an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The inclusion of a 6-pad, spring-centered race disc helps damp torsional vibrations, providing smoother engagement and improved drivability. Constructed with precision cover stampings, this clutch kit offers enhanced rigidity and reliability for serious enthusiasts.

Designed specifically for the 1988 Toyota Camry, this clutch kit is suitable for street, track, or off-road applications where durability and performance are critical. It is a direct replacement for stock components, ensuring straightforward installation. The kit includes all necessary components for a complete upgrade, such as the pressure plate and race disc. Compatible with the stock flywheel and suitable for vehicles with high torque demands, this clutch kit is ideal for drivers seeking increased holding capacity and longevity in their clutch system.

Overview

ACT HD/Race Sprung 6 Pad Kit

TY3-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 15
  • Torque Capacity (ft/lbs.): 500
  • Torque Capacity Over OE: 0.69
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1996-2000 Toyota RAV4
  • 1988-1989 Toyota Celica
  • 1990-1991 Lexus ES250
  • 1988-1991 Toyota Camry

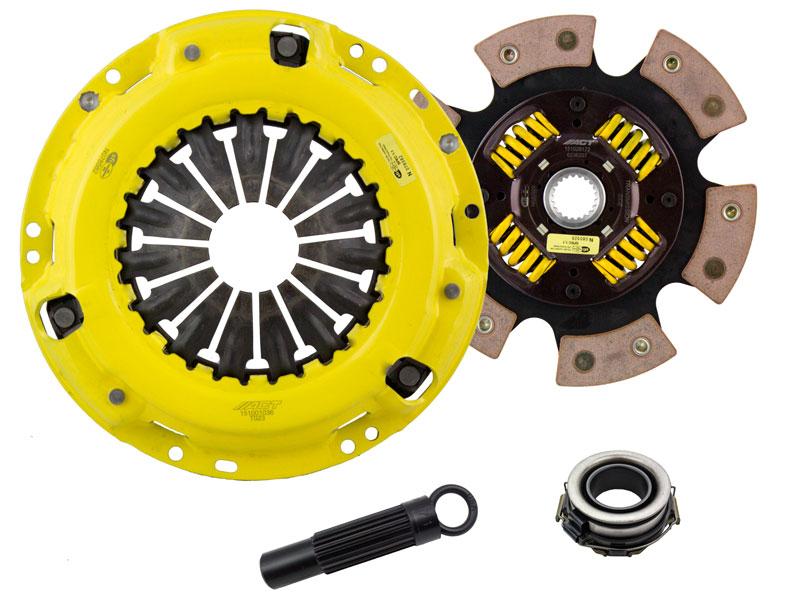

What's In The Box?

  • Clutch Release Bearing (RB219)
  • Clutch Pressure Plate (T023)
  • Clutch Friction Disc (6236207)
  • Clutch Alignment Tool (AT71)

References

Warranty

  • Manufacturer 1 Year Warranty
