The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Toyota Camry (02) is a high-performance clutch assembly designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The inclusion of a 6-pad, spring-centered race disc helps damp torsional vibrations effectively, providing smoother engagement and enhanced control during aggressive driving. Constructed with precision cover stampings, this clutch kit offers rigidity and reliability, making it suitable for both street and race applications.

Designed for the 2002 Toyota Camry equipped with a compatible engine, this clutch kit is a direct replacement for stock components, offering increased clamping force and longevity. It is ideal for high-performance street driving, track use, or applications requiring enhanced durability under heavy loads. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Suitable for vehicles subjected to increased power or frequent spirited driving, this clutch assembly delivers improved grip and consistent engagement, making it a reliable choice for enthusiasts seeking enhanced performance and durability.

Overview

ACT HD/Race Sprung 6 Pad Kit

TY4-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 15
  • Torque Capacity (ft/lbs.): 500
  • Torque Capacity Over OE: 0.69
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic

Applications

  • 1992-2002 Toyota Camry
  • 1992-1993 Lexus ES300
  • 1999-2002 Toyota Solara

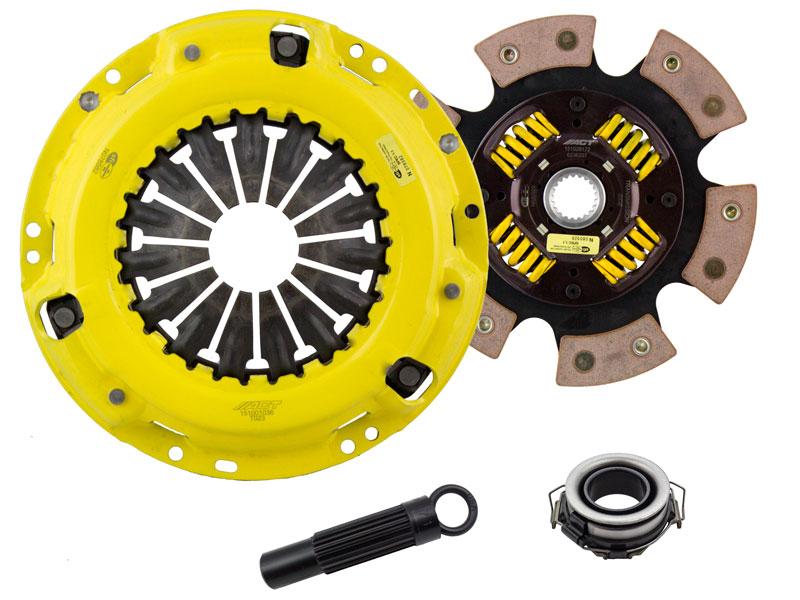

What's In The Box?

  • Clutch Friction Disc (6236207)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB446)
  • Clutch Pressure Plate (T023)

References

Warranty

  • Manufacturer 1 Year Warranty
