ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Kia Sephia (96) (Z61-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Kia Sephia (96) (Z61-HDG6)

Z61-HDG6

In stock

$704.00 USD
$704.00 USD $704.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Kia Sephia (96) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, utilizing an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under stress. The kit includes a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, providing smoother engagement and enhanced control. Constructed with precision cover stampings, this clutch assembly offers rigidity and reliability for spirited driving and racing applications.

Designed specifically for the 1996 Kia Sephia, this clutch kit is a direct replacement upgrade for stock components. It is suitable for street use, track days, or racing scenarios where increased clamping force and durability are required. The assembly is bolt-on compatible with the original flywheel and transmission setup, ensuring straightforward installation. The kit provides all necessary components for a complete upgrade, delivering improved torque capacity and longevity. Ideal for enthusiasts seeking a robust, high-performance clutch solution, this ACT kit enhances driving confidence and power transfer in demanding environments.

Overview

ACT HD/Race Sprung 6 Pad Kit

Z61-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 13.4
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 0.98
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 22
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 2000-2003 Kia Spectra
  • 1988-1989 Mazda 323
  • 1988-1992 Mazda MX-6
  • 1988-1992 Mazda 626
  • 1996-2001 Kia Sephia
  • 1995-2002 Kia Sportage
  • 1989-1992 Ford Probe

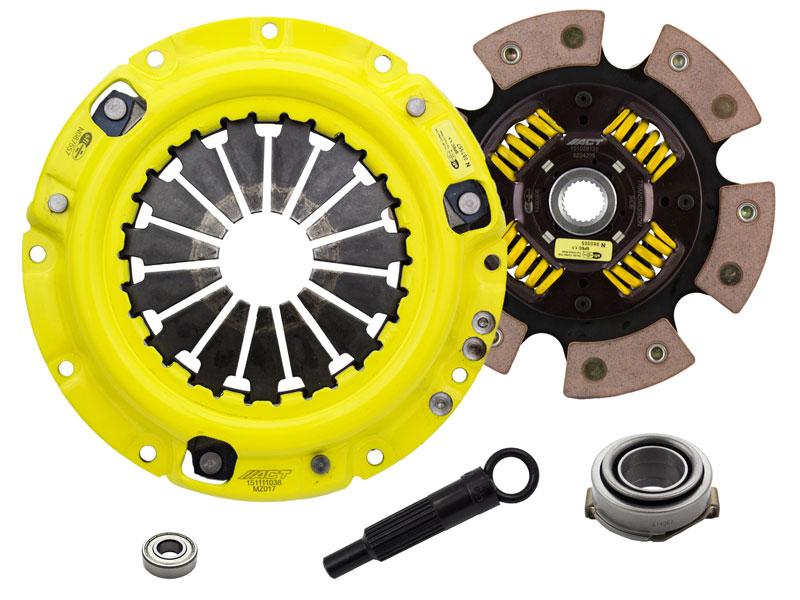

What's In The Box?

  • Clutch Friction Disc (6224205)
  • Clutch Alignment Tool (AT05)
  • Clutch Pressure Plate (MZ017)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
