ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Mazda Protege (01) (Z66-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Mazda Protege (01) (Z66-HDG6)

Z66-HDG6

Out of stock

$620.00 USD
$765.00 USD $620.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Mazda Protege (01) features a high-performance clutch assembly designed for demanding driving conditions. The kit includes ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance. The 6-pad, spring-centered race disc is engineered to damp torsional vibrations effectively, providing smooth engagement and enhanced control during aggressive driving. Constructed with precision cover stampings, this clutch kit delivers increased rigidity and reliability, making it suitable for high-stress applications.

Designed specifically for the 2001 Mazda Protege with compatible engine configurations, this clutch kit serves as a robust upgrade for street and track use. It is a direct replacement for stock components, offering improved clamp force and durability under high-performance conditions. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Ideal for enthusiasts seeking increased performance and longevity, this clutch kit is suitable for spirited driving, racing, or heavy-duty daily use. Proper fitment and installation are recommended for optimal results on compatible Mazda Protege models within the specified year range.

Overview

ACT HD/Race Sprung 6 Pad Kit

Z66-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 14.2
  • Torque Capacity (ft/lbs.): 355
  • Torque Capacity Over OE: 0.87
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 22
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1993-1997 Mazda MX-6
  • 1993-1997 Ford Probe
  • 1993-2002 Mazda 626
  • 2001-2003 Mazda Protege
  • 2002-2003 Mazda Protege5

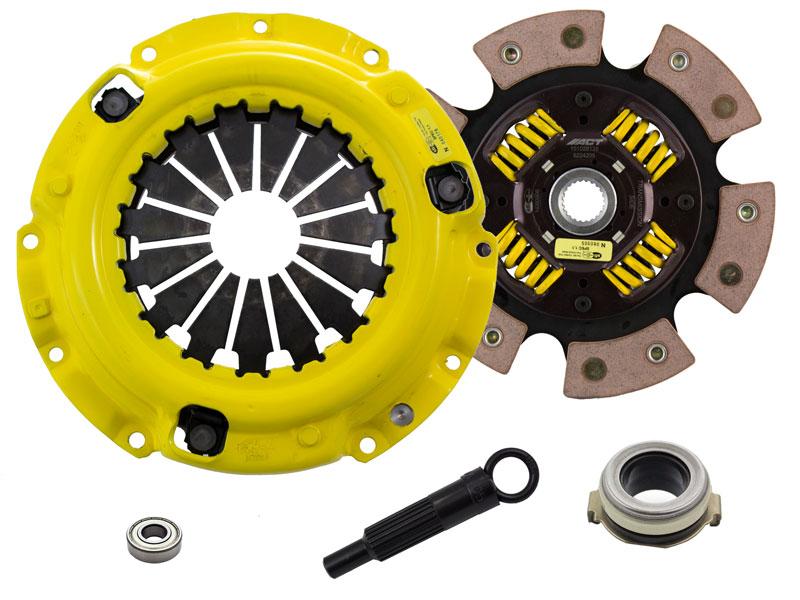

What's In The Box?

  • Clutch Friction Disc (6224205)
  • Clutch Alignment Tool (AT05)
  • Clutch Pressure Plate (MZ018)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB110)

References

Warranty

  • Manufacturer 1 Year Warranty
