ACT Triple Disc Extreme Sintered Iron Race Clutch Kit | Toyota 2JZ-GTE w/ G-Force (T2R3-T01)
ACT Triple Disc Extreme Sintered Iron Race Clutch Kit | Toyota 2JZ-GTE w/ G-Force (T2R3-T01)
SKU:T2R3-T01
Out of stock
Couldn't load pickup availability
The ACT Triple Disc Extreme Sintered Iron Race Clutch Kit for the Toyota 2JZ-GTE is a high-performance clutch solution designed for serious racing applications. This race-ready kit features triple sintered iron discs that provide the highest torque capacity among ACT race discs, making it ideal for demanding power levels. The discs are engineered for ultra-high heat capacity, ensuring reliable operation under extreme conditions. Included in the kit is a CNC-machined, dynamically balanced flywheel that guarantees smooth engagement and trouble-free use. All components undergo a rigorous four-stage heat-treating process on the diaphragms to enhance durability and performance, making this clutch suitable for high-stress environments.
Designed specifically for the Toyota 2JZ-GTE engine, this clutch kit is a direct bolt-in replacement requiring no additional modifications. It is intended for use in racing, high-performance street driving, or any scenario demanding maximum torque transfer. The kit is compatible with 2JZ-GTE models and offers a straightforward installation process, serving as an upgrade over stock clutches. The included components ensure a reliable, high-capacity clutch system capable of handling increased power levels, making it an excellent choice for enthusiasts seeking race-level performance and durability in their vehicle.
Share
Overview
Overview
2JZ Clutch Kit ACT

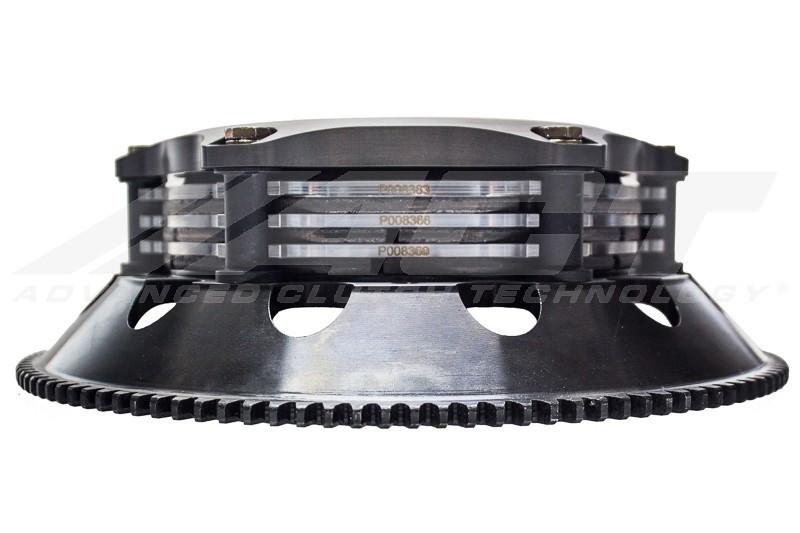

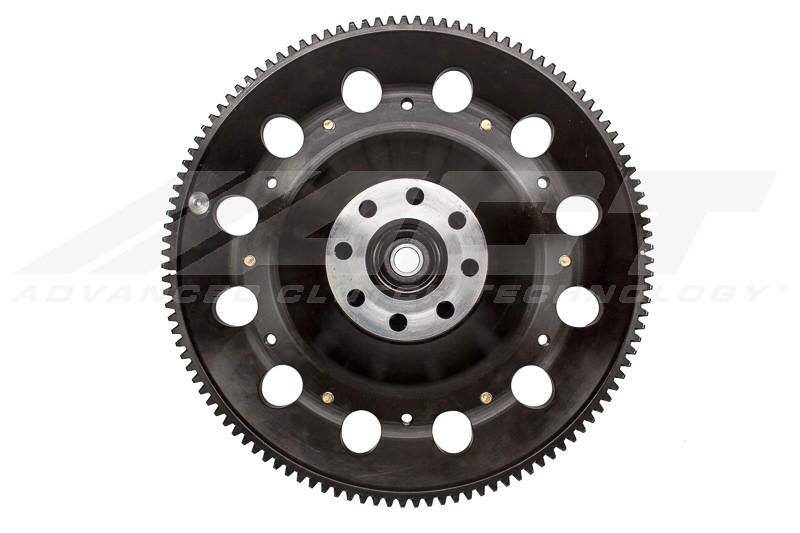

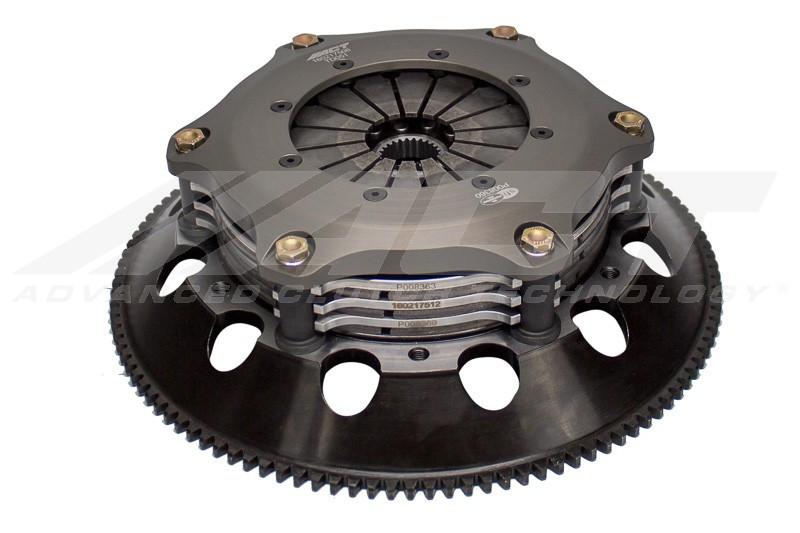

T2R3-T01 race, triple disc kits are race-ready for the serious enthusiast who needs a direct bolt-in kit, requiring no additional modifications. ACT's sintered iron race discs offer the highest torque capacity of all ACT race discs and have ultra-high heat capacity. All ACT triple disc kits include a CNC-machined and dynamically balanced flywheel for trouble free use. All kits undergo an exclusive four-stage, heat-treating process on all diaphragms. ACT triple disc kits include a pressure plate, three discs, two floaters, and flywheel. Some kits may include a pilot bearing and release bearing.
Features
- Moderate to heavy pedal effort
- Carefully engineered, precisely assembled, accurately balanced, chromoly hub is heat-treated for strength and durability
- ACT's exclusive diaphragm, hardened posts and high heat capacity for long life under severe abuse, rigid design may increase spline wear
Benefits
- ACT Triple disc kits meet SFI Specification 1.2
- Predictable, quick engagement
- Quick throttle response
Please Note:
- Developed for use with 2ZJ-GTE engine using G-Force transmission with 6.6" Input shaft, 1-1/8" x 26 GM spline, Quicktime bell housing #RM-4031 without block plate and Tilton Hydraulic Release Bearing # 60-4420.
Applications
- Toyota 2JZ-GTE w/ G-Force 101
What's in the box?
- (1) Race disc
Warranty
- ACT Warranty
