ACT Heavy Duty Race Rigid 6 Puck Clutch Kit | Subaru WRX (02-05) (SB9-HDR6)

ACT Heavy Duty Race Rigid 6 Puck Clutch Kit | Subaru WRX (02-05) (SB9-HDR6)

SB9-HDR6

In stock

$748.00 USD
$923.00 USD $748.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

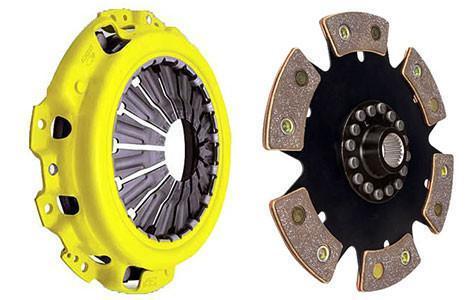

The ACT Heavy Duty Race Rigid 6 Puck Clutch Kit for Subaru WRX (2002-2005) is a high-performance clutch assembly designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, with precision cover stampings that enhance rigidity. The 6-pad rigid race disc is constructed with high-quality ceramic friction material, providing excellent grip and heat resistance for aggressive driving and racing applications. Overall, this clutch kit delivers reliable power transfer, improved durability, and enhanced performance for spirited street and track use.

Designed for 2002-2005 Subaru WRX models, this clutch kit is a direct replacement for stock components, offering a robust upgrade for high-performance driving. It is suitable for vehicles subjected to increased power levels, track days, or aggressive street driving. The kit is a bolt-on installation, requiring no modifications for proper fitment. It includes the heavy-duty pressure plate and 6-pad race disc, ensuring a complete upgrade for maximum clutch engagement and longevity. Compatible with stock or modified engines, this clutch kit is ideal for enthusiasts seeking improved holding capacity and durability under demanding conditions.

Overview

2002-2005 Subaru WRX ACT HD-M/Race Rigid 6 Pad Clutch Kit

SB9-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance.

ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

Features

  • Torque Capacity (ft/lbs.): 550
  • Light to moderate pedal effort, aggressive engagement, increased gear rattle, confidence during hard shifts
  • Moderate friction life, extended by ACT's exclusive diaphragm design, dramatic improvement in release mechanism life, rigid design may increase spline wear
  • Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance, major improvement in release mechanism
  • Recommended for race use only
  • 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, includes ACT's patented Monoloc

Applications

  • 2004-2005 Subaru Baja Turbo
  • 1991-1994 Subaru Legacy Sport 2.2L/2212cc H 4 Turbocharged SOHC
  • 2004-2005 Subaru Forester XT(See * below)
  • 2002-2005 Subaru Impreza WRX(See * below)
  • *Must be used with ACT flywheel or 2003 to 2005 WRX flywheel

What's in the box?

  • 6228018 - 6 Pad Rigid Race Disc
  • AT90 - Alignment Tool
  • PB1004 - Pilot Bearing
  • RB601 - Release Bearing
  • SB018 - P/PL-M Heavy Duty Pressure Plate
  • Installation Instructions!

Specifications

  • Description: HD-M/Race Rigid 6 Pad
  • Torque Capacity (ft/lbs.): 550
  • Torque Capacity Over OE: 70%
  • Disc Type: Race Disc
  • Spline Count: 24
  • Spline Size (in.): 1
  • Disc Diameter (in.): 9
  • Disc Diameter (mm.): 228
  • Pressure Plate Type: Heavy Duty
  • Product Weight (lbs.): 15.3
