• ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Subaru WRX STI (04-21) (SB10-HDG4)
1 1

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Subaru WRX STI (04-21) (SB10-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Subaru WRX STI (04-21) (SB10-HDG4)

SB10-HDG4

In stock

$827.00 USD
$1,021.00 USD $827.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for Subaru WRX STI (2004-2021) is a high-performance clutch assembly designed to handle increased power and demanding driving conditions. This kit includes a heavy-duty pressure plate featuring ACT's exclusive diaphragm design, which enhances clamp load, reduces deflection, and extends clutch lifespan. The 4-puck sprung disc provides smooth engagement and improved heat dissipation, making it suitable for aggressive street and track use. Constructed with heat-treated components and precision cover stampings, this clutch delivers consistent performance, durability, and reliable operation under high-stress conditions.

Designed specifically for 2004-2021 Subaru WRX STI models, this clutch kit is a direct replacement for stock components, ensuring a straightforward installation. It is ideal for enthusiasts seeking increased clamping force and durability for spirited driving, racing, or high-performance applications. The kit includes all necessary components for installation, providing a comprehensive upgrade for vehicles subjected to increased power levels or frequent track use. Compatible with stock or modified engines, this clutch enhances overall drivetrain performance and longevity.

Overview

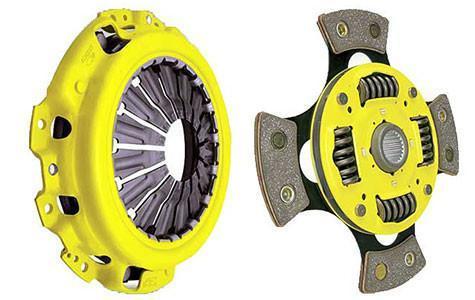

2004-2021 Subaru WRX STI Heavy Duty Pressure Plate / 4 Puck Sprung Disc Clutch by ACT

SB10-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened Chrome-moly steel construction will provide years of service.

Features

  • Product Weight (lbs.) - 17.2
  • Torque Capacity (ft/lbs.) - 668
  • Torque Capacity Over OE - 88%
  • Disc Material - Ceramic
  • Clutch Disc Diameter (Inches) - 9.4
  • Clutch Disc Diameter (Millimeters) - 240
  • Input Shaft Diameter (inches) - 1
  • Pressure Plate Type - Heavy Duty

Benefits

  • Feel - Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle, confidence during hard shifts
  • Life - Moderate friction life, extended by ACT's exclusive diaphragm design, dramatic improvement in release mechanism life
  • Quality - Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance, major improvement in release mechanism
  • Recommended Use - Recommended for high horsepower street or race use
  • ACT Difference - 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, includes ACT's patented Monoloc

Applications

  • 2004-2021 Subaru WRX STI

What's In The Box?

  • 1 - Heavy Duty Pressure Plate / 4 Puck Sprung Disc Clutch

Warranty

  • ACT's Standard 1-Year Limited Warranty
