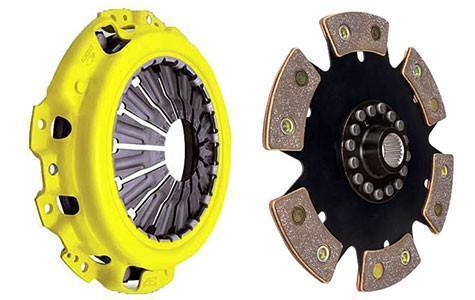

• ACT Heavy Duty Race Rigid 6 Pad Pressure Plate Clutch | Subaru WRX (06-21) (SB5-HDR6)
1 1

ACT Heavy Duty Race Rigid 6 Pad Pressure Plate Clutch | Subaru WRX (06-21) (SB5-HDR6)

ACT Heavy Duty Race Rigid 6 Pad Pressure Plate Clutch | Subaru WRX (06-21) (SB5-HDR6)

SB5-HDR6

In stock

$954.00 USD
$1,178.00 USD $954.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 6 Pad Pressure Plate Clutch for Subaru WRX (2006-2021) is a high-performance clutch component designed to enhance durability and power transfer. Featuring ACT's most popular Heavy Duty pressure plate, it utilizes an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure superior performance and reliability. Precision cover stampings provide added rigidity and consistency, while the 6-pad rigid race disc incorporates high-quality ceramic friction material for optimal grip. This assembly is engineered for aggressive driving conditions, track use, and high-power applications, delivering improved response and longevity.

Designed to fit 2006-2021 Subaru WRX models, this clutch kit is a direct replacement for stock components. It is suitable for street, track, and performance driving, offering a robust upgrade for vehicles with increased horsepower or demanding driving styles. Installation is straightforward as a bolt-on upgrade, compatible with the stock flywheel and transmission setup. The kit includes the pressure plate, clutch disc, and necessary hardware, ensuring a complete upgrade for maximum clutch performance. This product is ideal for enthusiasts seeking a reliable, high-capacity clutch solution for spirited driving or racing applications.

Overview

2006-2021 Subaru WRX ACT HD/Race Rigid 6 Pad Clutch Kit

SB5-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Torque Capacity: 535 ft/lb
  • Light to moderate pedal effort, aggressive engagement, increased gear rattle
  • Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
  • Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended for race use only
  • 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

  • 2006-2021 Subaru WRX
  • 2006 Saab 9-2X Aero 2.5L/2458cc H 4 Turbocharged
  • 2006 Subaru Baja Turbo 2.5L
  • 2006-2007 Subaru Forester XT Limited>/li>
  • 2008 Subaru Forester 2.5 XT
  • 2006 Subaru Legacy GT spec.B(see * below)
  • 2005-2006 Subaru Legacy GT(see * below)
  • 2005, 2007-2009 Subaru Legacy GT Limited(see * below)
  • 2010 Subaru Legacy 2.5GT(see * below)
  • *230mm
  • *5 Speed applications only
  • *Must be used with ACT flywheel or factory flywheel for 2006 and newer WRX (not included)

What's in the box?

  • 6228018 - 6 Pad Rigid Race Disc
  • AT90 - Alignment Tool
  • PB1004 - Pilot Bearing
  • RB844 - Release Bearing
  • SB014 - P/PL Heavy Duty Pressure Plate
  • Installation Instructions!

Specifications

  • Description: HD/Race Rigid 6 Pad
  • Torque Capacity (ft/lbs.): 535
  • Torque Capacity Over OE: 69%
  • Disc Type: Race Disc
  • Spline Count: 24
  • Spline Size (in.): 1
  • Disc Diameter (in.): 9
  • Disc Diameter (mm.): 228
  • Pressure Plate Type: Heavy Duty
  • Product Weight (lbs.): 13.5
