ACT MaXX Extreme 4-Pad Race Clutch Kit | Honda Civic Si/Del Sol VTEC/Acura Integra (AI4-XXR4)

ACT MaXX Extreme 4-Pad Race Clutch Kit | Honda Civic Si/Del Sol VTEC/Acura Integra (AI4-XXR4)

AI4-XXR4

In stock

$620.00 USD
$765.00 USD $620.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX Extreme 4-Pad Race Clutch Kit is a high-performance upgrade designed for Honda Civic Si, Del Sol VTEC, and Acura Integra models from 1994 to 2001. This kit combines ACT's MaXX pressure plate with a ceramic four-pad rigid race disc, engineered to deliver exceptional holding capacity and durability under demanding conditions. The MaXX pressure plate features an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. All diaphragms undergo a rigorous four-stage heat-treating process, ensuring consistent performance and resilience. The pressure plates are constructed with precision cover stampings to enhance rigidity and stability during aggressive driving, making this clutch kit ideal for racing and high-performance street applications.

Designed specifically for 1994-2001 Honda Civic Si, Del Sol VTEC, and Acura Integra models, this clutch kit is a direct replacement for stock components, providing a significant upgrade in holding power and heat resistance. It is suitable for street, track, and racing use, offering reliable engagement and pedal feel under high-stress conditions. Installation involves replacing the stock clutch components with this bolt-on kit, which includes the pressure plate and ceramic race disc. The kit is optimized for vehicles with upgraded or stock engines seeking improved performance and longevity in demanding driving environments, making it an excellent choice for enthusiasts and racers alike.

Overview

99-00 Honda Civic Si / 94-97 Del Sol VTEC & 94-01 Acura Integra MaXX Race Clutch Kit by ACT

This kit features ACT's MaXX pressure plate paired with their ceramic 4-pad rigid race disc.

ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Feel: Heavy to very heavy pedal effort, aggressive engagement, quicker shifts, increased gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design; rigid design may increase spline wear
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for race use only
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Benefits

  • Torque Capacity (ft/lbs): 485 ft/lbs
  • Torque Capacity (% Over OE): 162%

Applications

  • 1999 - 2000 Honda Civic Si
  • 1994 - 1997 Honda Civic Del Sol VTEC
  • 1998 - 2001 Honda CR-V EX/LX
  • 1994 - 2001 Acura Integra

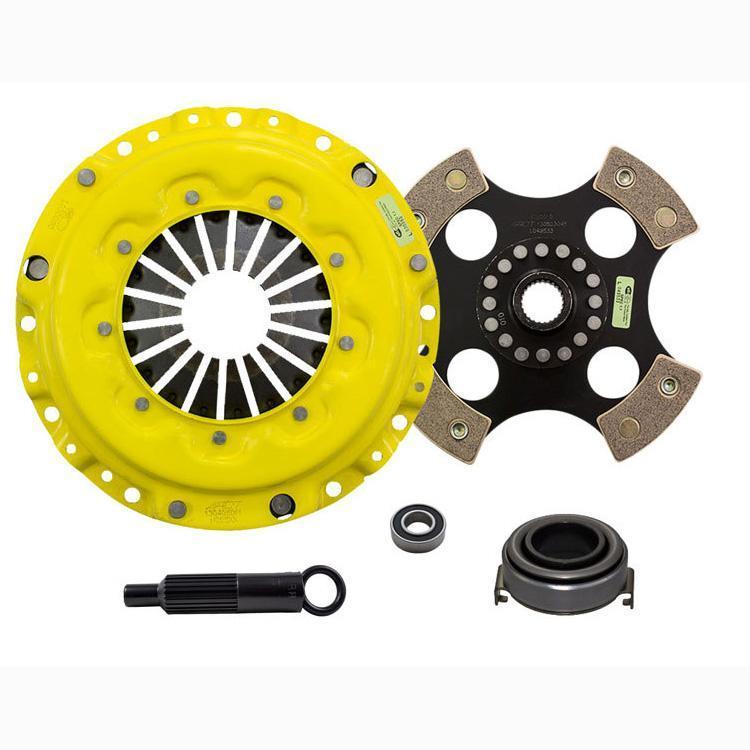

What's In The Box?

  • 1 - MaXX Pressure Plate
  • 1 - Rigid 4-Pad Race Disc
  • 1 - Release Bearing
  • 1 - Pilot Bearing
  • 1 - Alignment Tool

References

Warranty

  • ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase.
